315 Microtome
is mainly used for slicing thin sections of different specimens, as biopsies
for pathological diagnosis, tissue samples of animal and plant, plastic, cork,
wood, polystyrene, etc.

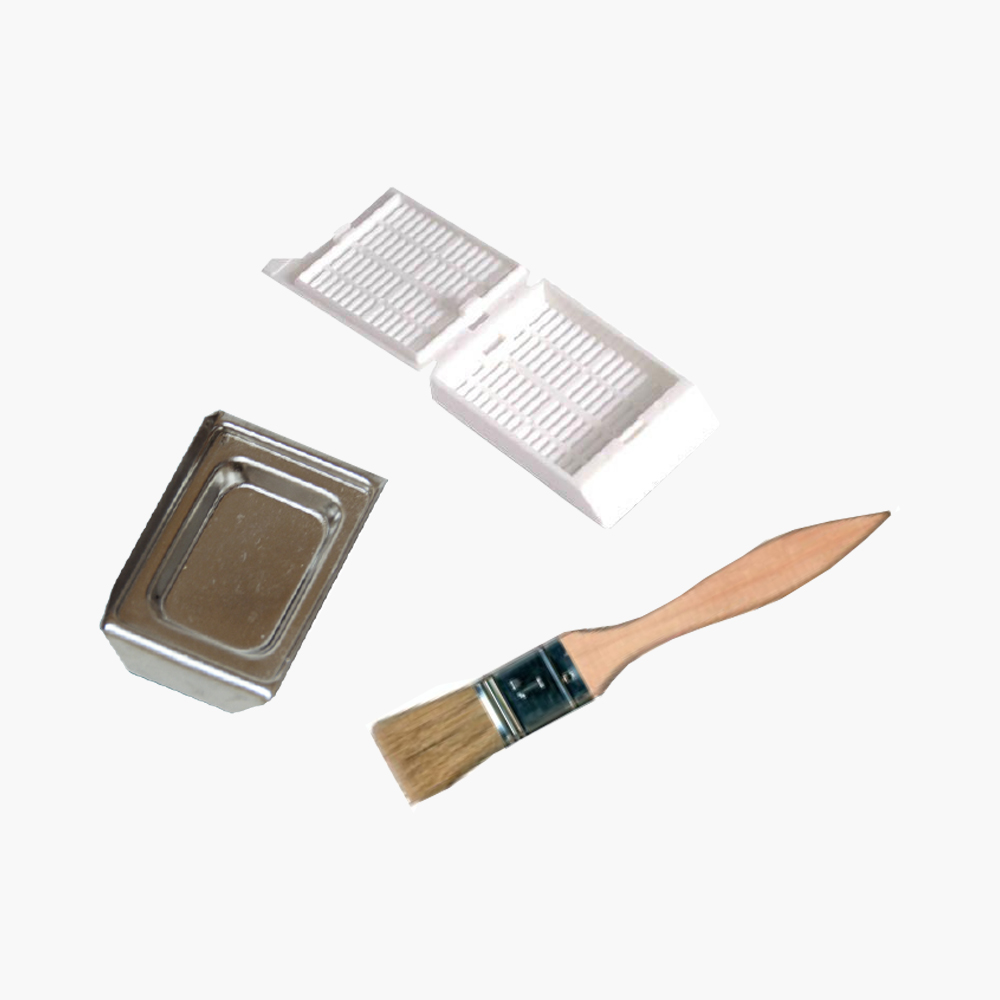

Standard
Accessories:
Microtome
blade holders
Clamps
Metal base
molds
Cassettes
Dissecting
forceps
Brush
Inner hexagon spanner

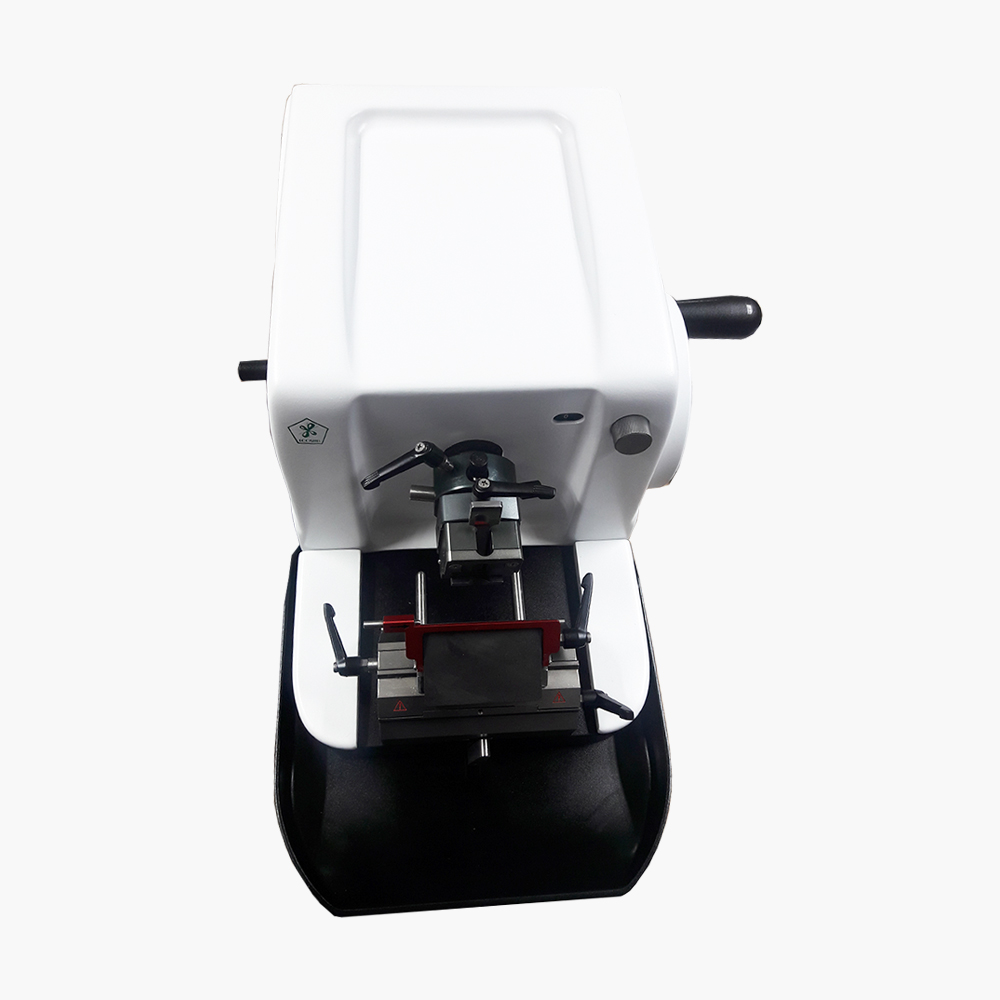

315 Microtome
is mainly used for slicing thin sections of different specimens, as biopsies
for pathological diagnosis, tissue samples of animal and plant, plastic, cork,
wood, polystyrene, etc. This microtome has a novel structure, advanced
features, and an excellent performance. It is used widely in research
institutes, universities, colleges, hospitals, and laboratories.
Key features:
1) Two clamps (universal cassette clamp and
standard specimen clamp) and two microtome blade holders.
2) Smooth-running handwheel and can be manual
locked in any direction, to protect to operator during samples processing.
3) Waste tray
increases efficiency by decreasing cleaning time and reduces contamination to
the operator/environment by effectively collecting and containing waste.
4) Handwheel
left can lead specimen advance and retraction quickly and conveniently.
5) Microtome blade holder can be easily moved and placed, providing maximum comfort to operator.
Section thickness range: 0.5 - 60 µm
Slice thickness adjustment:
• 0.5 - 2 µm (in 0.5 µm increments)
• 2 - 10 µm (in 1 µm increments)
• 10 - 20 µm (in 2 µm increments)
• 20 - 60 µm (in 5 µm increments)
Vertical specimen stroke: 59 mm
Horizontal specimen stroke: 25 mm
Specimen orientation:
Horizontal: 8°
Vertical: 8°
Rotation: ± 90°
Movement range of blade holder:
Front and back: ± 25 mm
Left and right: ± 20 mm
Height of cutting edge: 105 mm
Overall dimensions: 276 x 460 x 278 mm
Net weight: 29 kg
Gross weight: 40 kg
Power Supply: AC 110V, 60 Hz
