Semi-Automatic
Microtome is mainly used for slicing thin sections of different specimens, as
biopsies for pathological diagnosis, tissue samples of animal and plant,
plastic, cork, wood, polystyrene, etc.
Standard
Accessories:
Microtome
blade holder
Clamps
Metal base
molds
Cassettes
Dissecting
forceps
Brush
Inner hexagon spanner
Semi-Automatic
Microtome is mainly used for slicing thin sections of different specimens, as
biopsies for pathological diagnosis, tissue samples of animal and plant,
plastic, cork, wood, polystyrene, etc. This microtome has stable performance,
easy operation and exemplary comfort; as well as ergonomic design and handwheel
slight, which greatly reduces intensity of job. It is used widely in research
institutes, universities, colleges, hospitals, and laboratories.
Key features:
1) Two clamps (universal cassette clamp and
standard specimen clamp).
2) Simple control panel with selection mode
(slice or trimming) and specimen advance and retraction quickly.
3) Smooth-running
handwheel and can be manual locked in any direction, to protect to operator
during samples processing.
4) Waste tray
increases efficiency by decreasing cleaning time and reduces contamination to
the operator/environment by effectively collecting and containing waste.

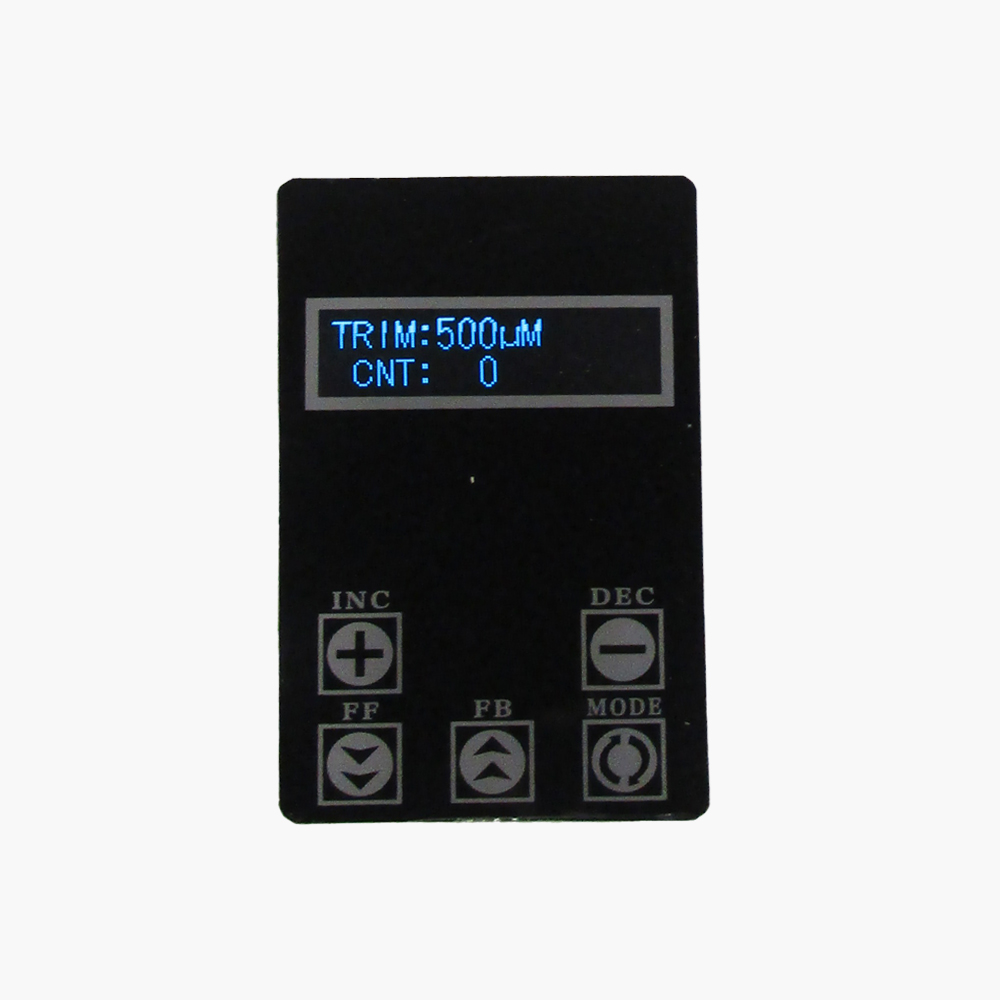

5) LCD display shows slice and trimming thickness, section counter, keyboard with controls for thickness and mode.
Section thickness range: 0.5 - 100 µm
Slice thickness adjustment:
• 0.5 - 2 µm (in 0.5 µm increments)
• 2 - 10 µm (in 1 µm increments)
• 10 - 20 µm (in 2 µm increments)
• 20 - 50 µm (in 5 µm increments)
• 50 - 100 µm (in 10 µm increments)
Trimming thickness range: 5 - 500 µm
Trimming thickness adjustment:
• 5 - 10 µm (in 5 µm increments)
• 10 - 100 µm (in 10 µm increments)
• 100 - 200 µm (in 20 µm increments)
• 200 - 500 µm (in 50 µm increments)
Specimen retraction: 20 µm
Specimen orientation:
Horizontal: 8°
Vertical: 8°
Rotation: ± 360°
Vertical specimen stroke: 60 mm
Horizontal specimen stroke: 28 mm
Section accuracy: ± 10%
Maximum specimen size: 50 x 45 mm
Overall dimensions: 500 x 420 x 310 mm
Net weight: 30 kg
Gross weight: 45 kg
Power Supply: AC 110V, 60 Hz
