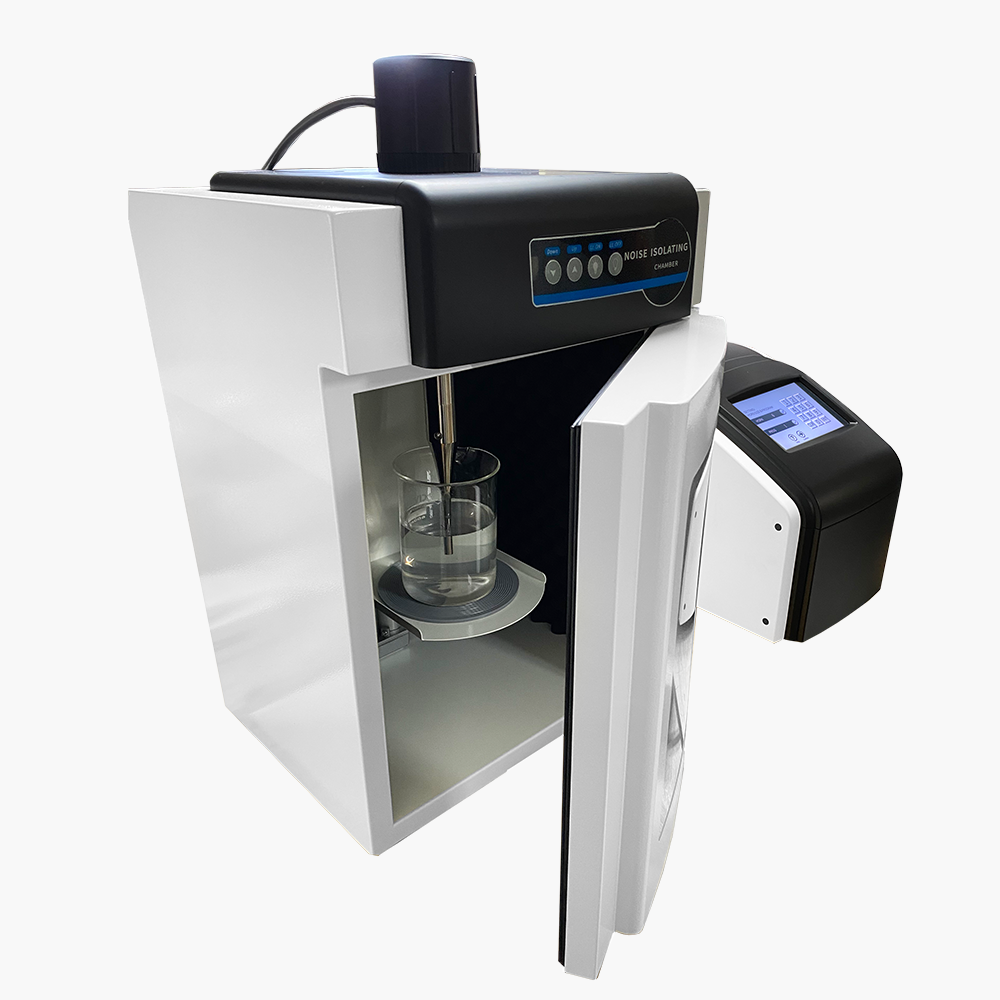

Ultrasonic Homogenizer
ECO-IID

ECO-IID facilitates the breaking up of hard samples and achieve a smaller particle size in tissue and cell disruption assays, and DNA, RNA, and protein extraction.



Standard Accessories:

Soundproof chamber

Hook spanners

Temperature probe

Ultrasonic probe tip

Ultrasonic probe



Optional Accessories: Φ2, Φ3 and Φ10 interchangeable tips

Innovative equipment that works differently than traditional homogenizers, to facilitate the breaking up of hard samples and achieve a smaller particle size in tissue and cell disruption assays, and DNA, RNA, and protein extraction. Ideal for biology, chemistry, biotechnology, microbiology, nanotechnology, quality control, and scientific research laboratories.



Key features:

1) Simple operation and intuitive control panel.

2) Temperature probe protects the sample from overheating during homogenization.

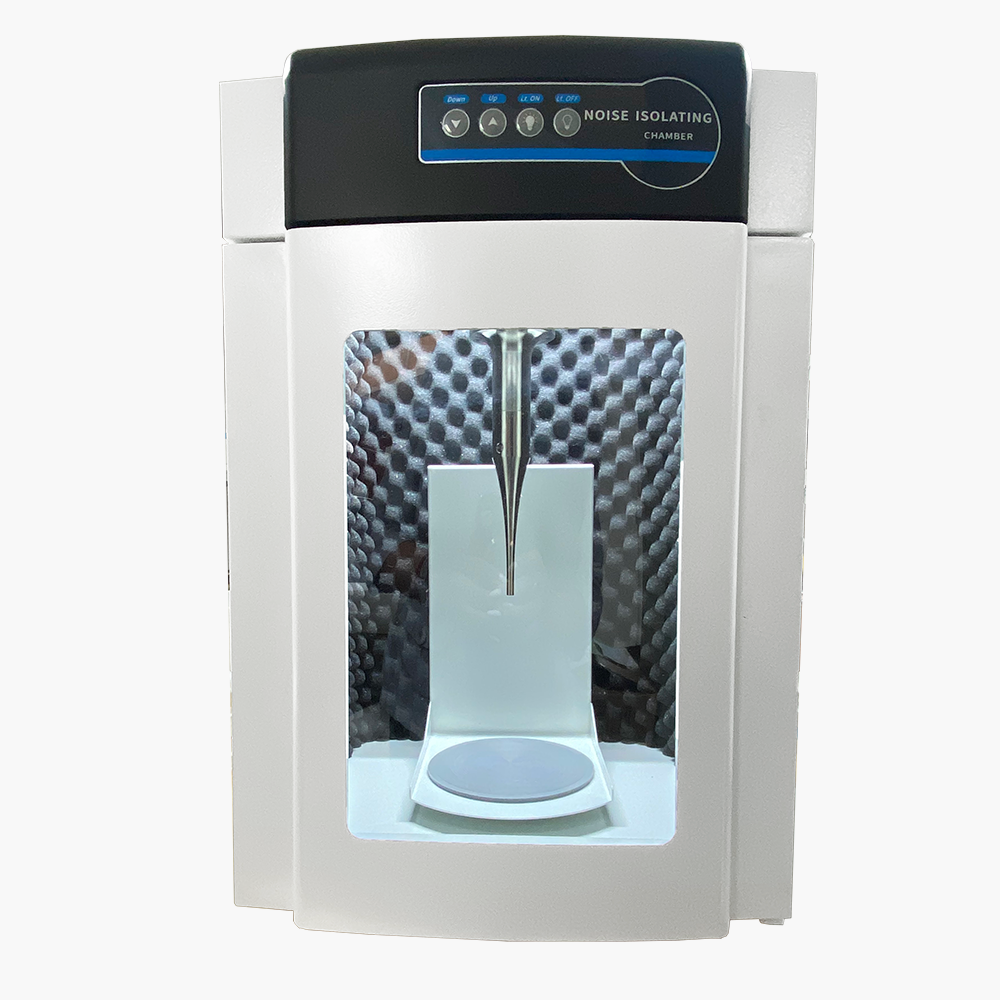

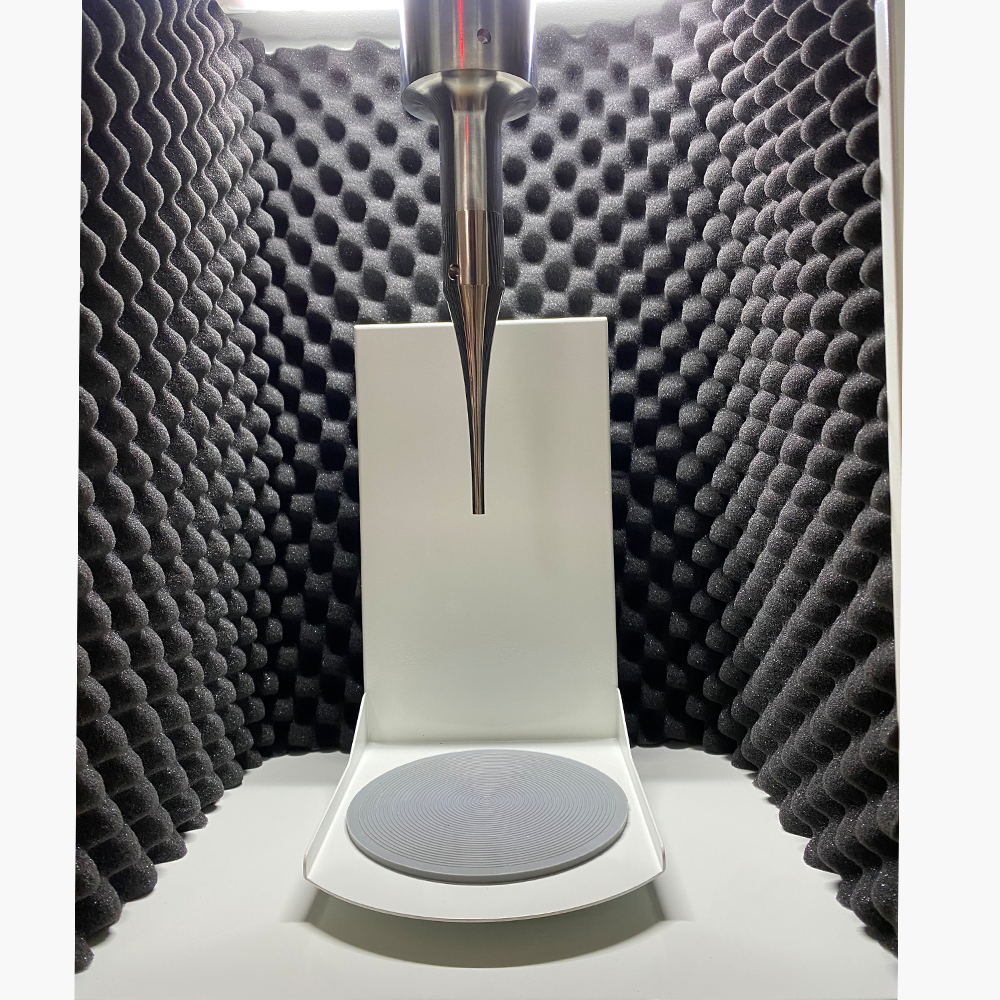

3) Soundproof chamber with transparent door that significantly reduces high-frequency noise emitted during homogenization.

4) Sample support base is motorized and its height is adjustable.

5) Interchangeable tips for different processing volumes.

Processing volume: 10 - 100 mL

Operation mode: Gap and continuous

Timer: 1 to 999 min

Operation and gap times: 0.1 - 99.9 seconds

Ultrasonic power: 1000 W (1-100%)

Ultrasonic frequency: 20 - 25 KHz

Display: 7-inches touch screen

Tip: Φ6

Tip material: Titanium alloy

Dimensions:

Soundproof chamber: 345 x 340 x 570 mm

Mainframe: 255 x 430 x 300 mm

Power: 1000 W

Power supply: AC 110V, 60Hz
