Equipment designed to determine the dielectric breakdown voltage (BDV) of insulating oils used in high-voltage equipment.
Standard Accessories:
Test vessel
Disk electrodes
Spherical electrodes
VDE electrodes
Magnetic stir bar
Gap gauges

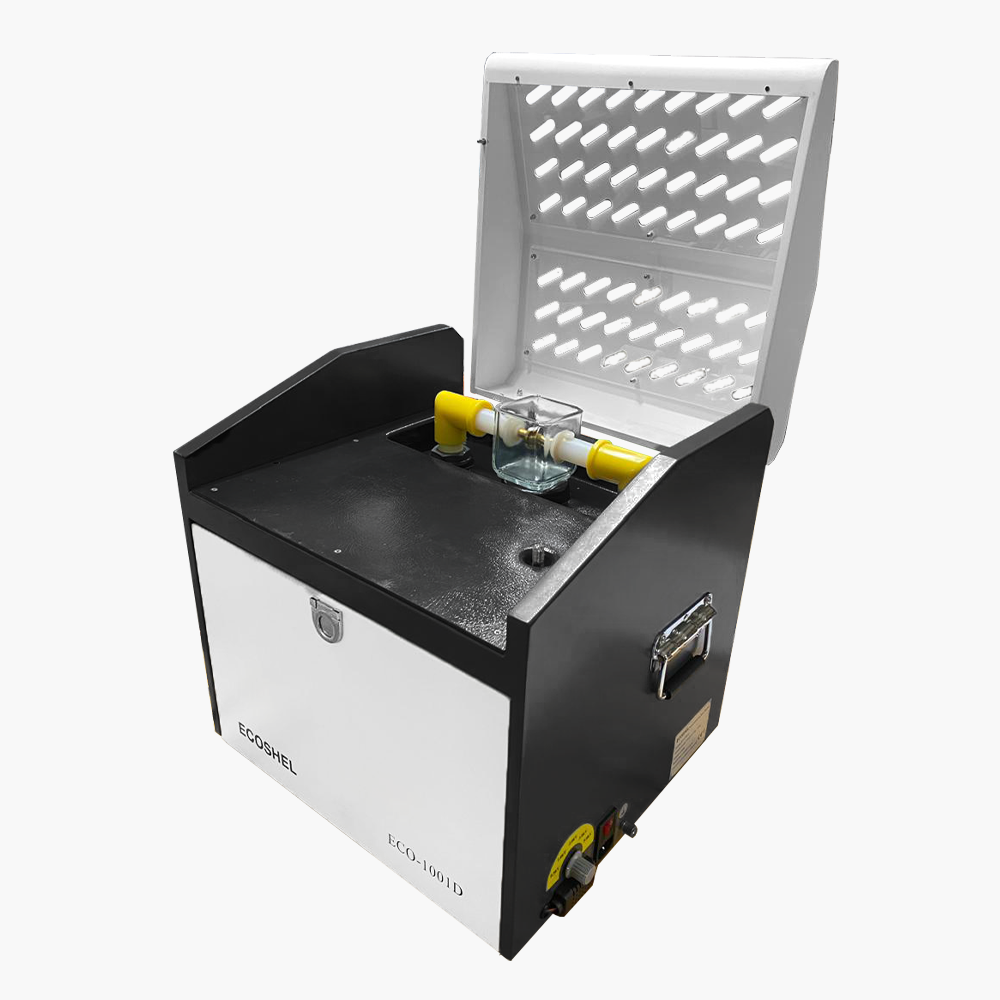

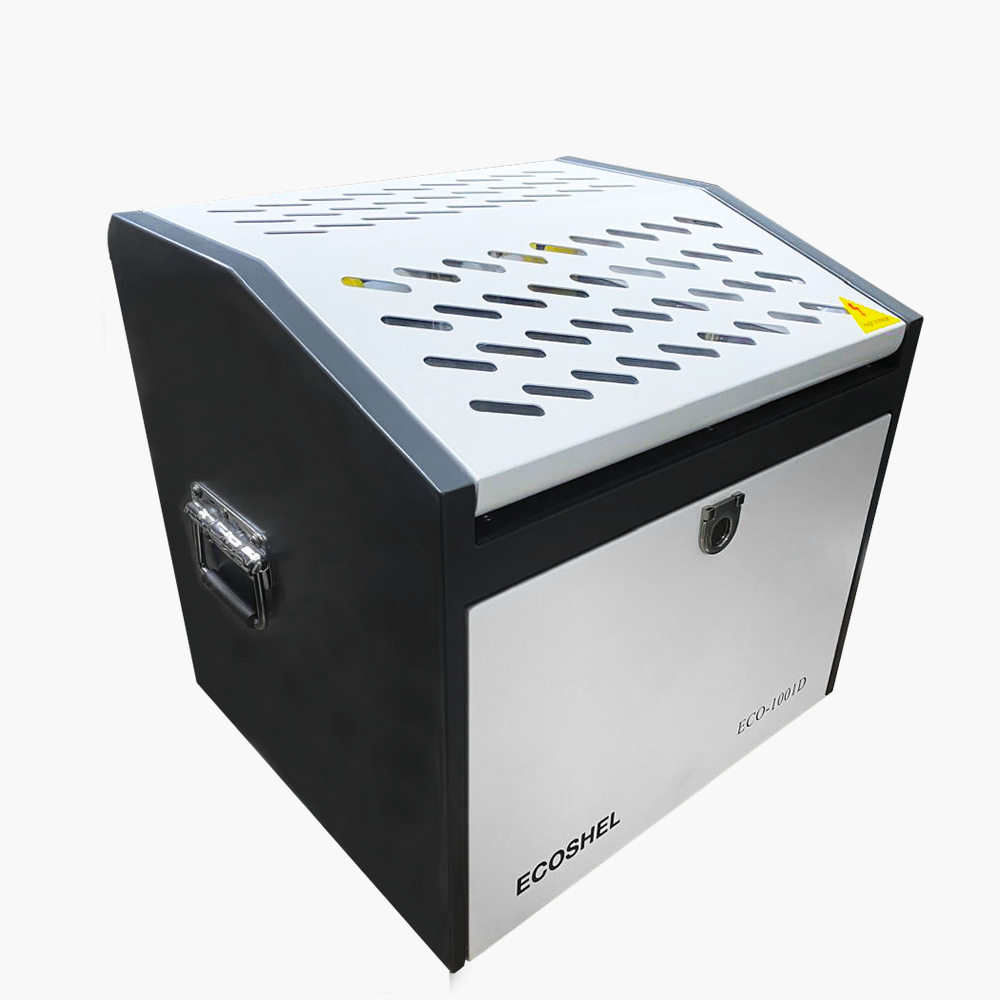

The ECO-1001D is designed to determine the dielectric breakdown voltage (BDV) of insulating oils used in high-voltage equipment, such as transformers, circuit breakers, and power transmission systems. BDV is measured by applying a steadily increasing voltage between two electrodes immersed in an oil sample, allowing evaluation of the oil's overall condition and helping to prevent critical failures in electrical infrastructure.
Key features:
1) Large color touchscreen with an intuitive user interface for easy operation.
2) Supports international test standards (IEC 60156, ASTM D1816 and ASTM D877) along with one user-defined test method.
3) One-piece molded test vessel designed to minimize interference and help reduce the risk of oil leakage.
4) Built-in printer allows hard copies of test results.
5) Supplied with electrodes and gap gauges compatible with test methods.
Output voltage: 0 to 80 kV
Transformer capacity: 1.5 kVA
Voltage rise rate: 0.5, 1.0, 2.0, 3.0, and 5.0 kV/s
Electrode gap: 2.5 mm (IEC 60156), 2.54 mm (ASTM D877) and 2 mm (ASTM D1816)
Test vessel volume: 200 mL
Test methods: 3 pre-set methods (IEC 60156, ASTM D1816 and ASTM D877) + 1 user-defined
Display: Color LCD touchscreen
Data storage: Up to 35 test records
Dimensions: 409 x 393 x 388 mm
Weight: 29 kg
Power: ≤ 100W
Power supply: AC 220V±10%, 60Hz
