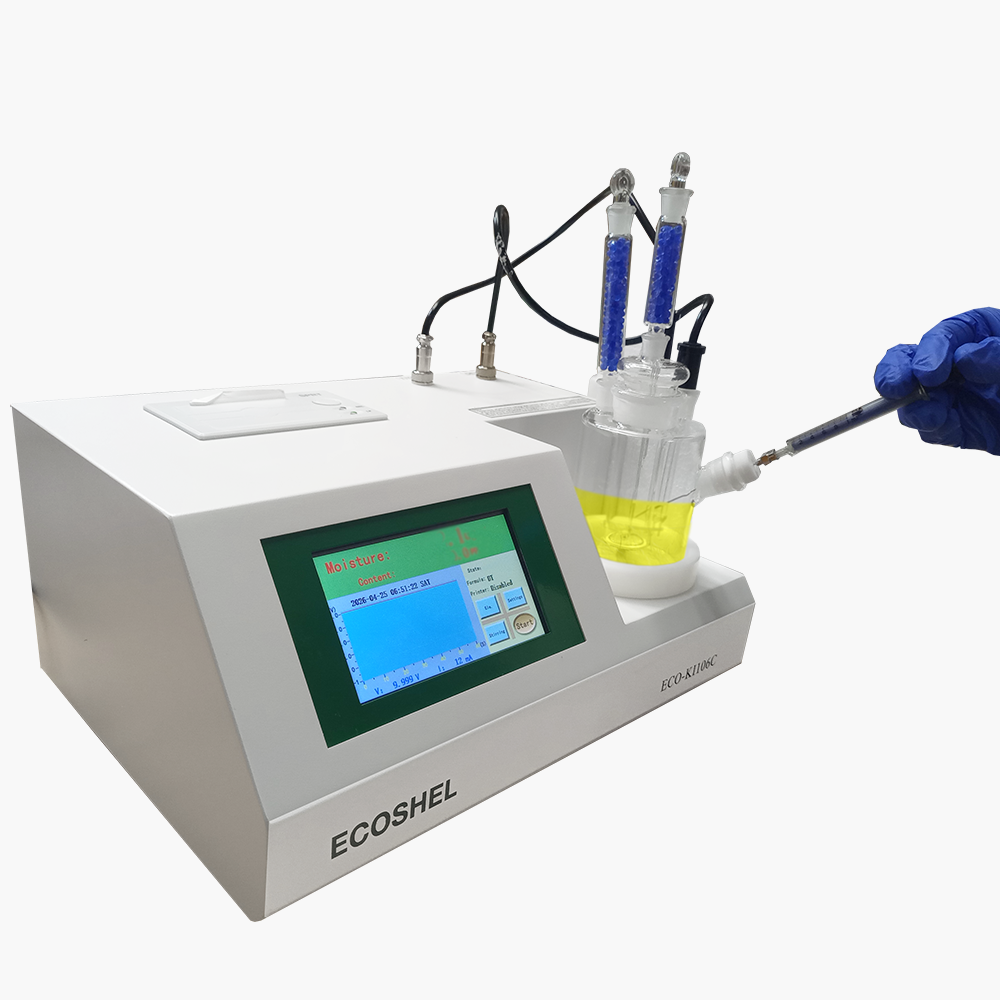

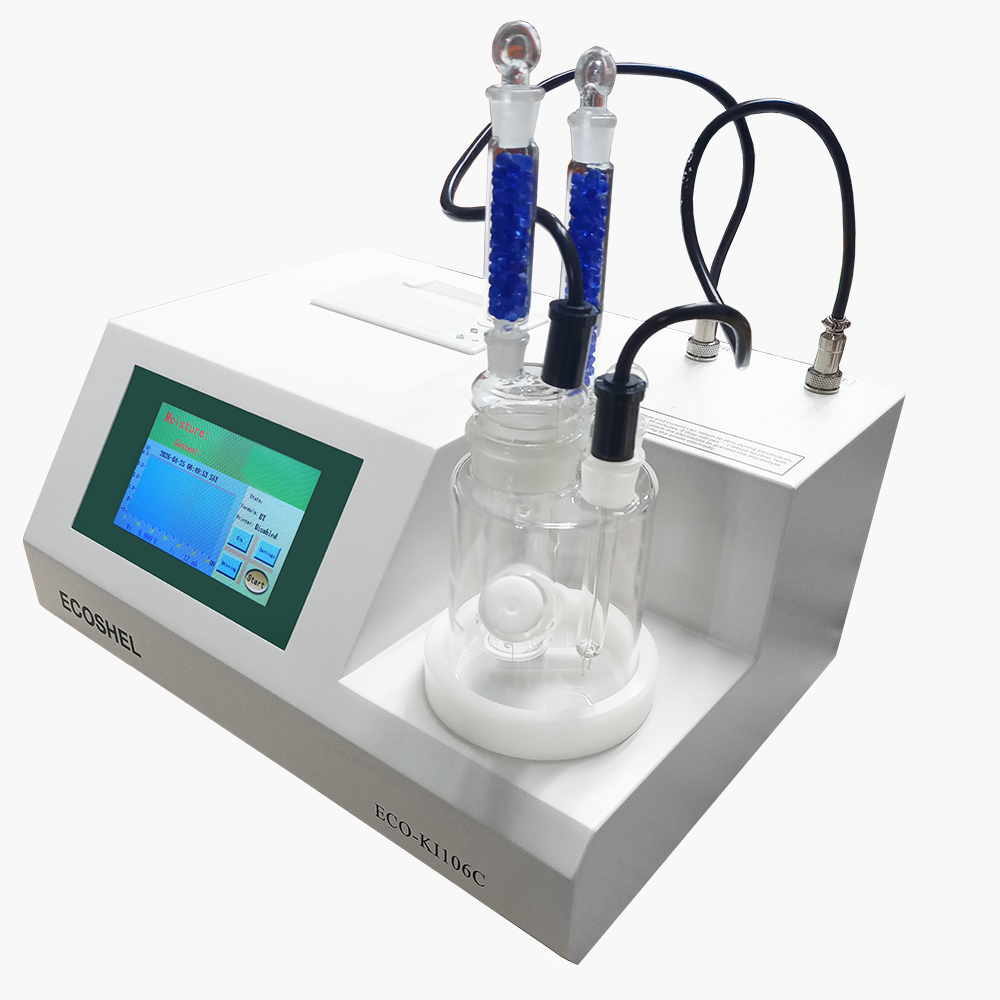

Karl Fischer Moisture Analyzer

ECO-KI106C

Equipment designed to determine the water content in liquid samples using Karl Fischer coulometric titration.

Standard Accessories:

Titration cell

Generator electrode

Indicator electrode

Drying tubes

Ground joint stopper

Funnel

Magnetic stir bar

Microsyringes

Silicone septum

Desiccant

Silicone grease

Sample syringe and needle

ORDER NOW

Equipment designed to determine the water content in liquid samples using Karl Fischer coulometric titration. The ECO-KI106C is used to analyze moisture traces in dielectric oils, materials, and insulating fluids used in high-voltage equipment, such as transformers, circuit breakers, and power transmission systems.

Key features:

1) Color touchscreen with an intuitive user interface for easy operation.

2) Real-time titration curve display.

3) Stirring system with speed control.

4) Built-in printer for hard copies of test results.

Measuring range: 0 µg to 200 mg

Accuracy:

5 to 100 µg: ± 3 µg

> 100 µg: ± 3% (excluding injection error)

Test method: Karl Fischer Coulometric Titration

Display: Color LCD touchscreen

Dimensions: 330 x 240 x 180 mm

Weight: 10 kg

Power: ≤ 50 W

Power supply: AC 220V±10%, 60Hz
