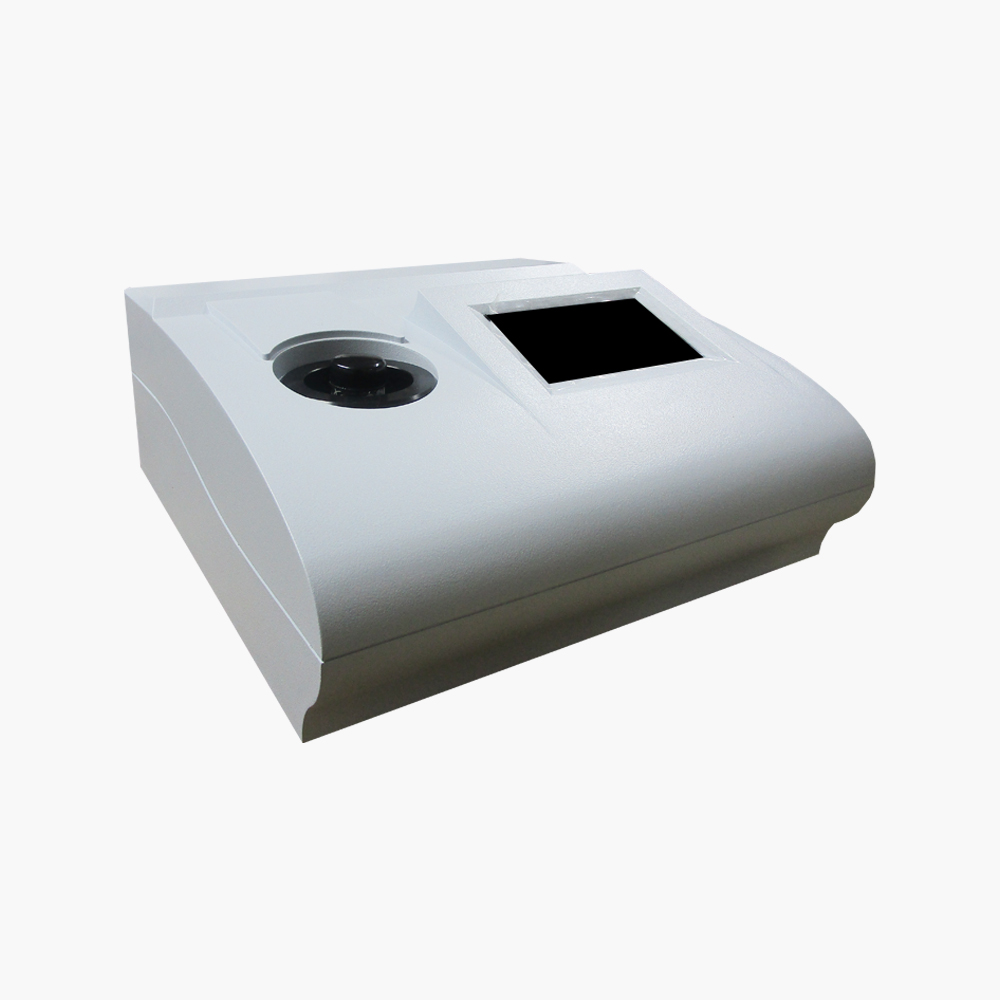

Turbidimeter
WGZ-200

Equipment used to measure the light scattering or attenuation generated by the insoluble particulate matter which is suspended in water (or clear liquid).



Standard Accessories:

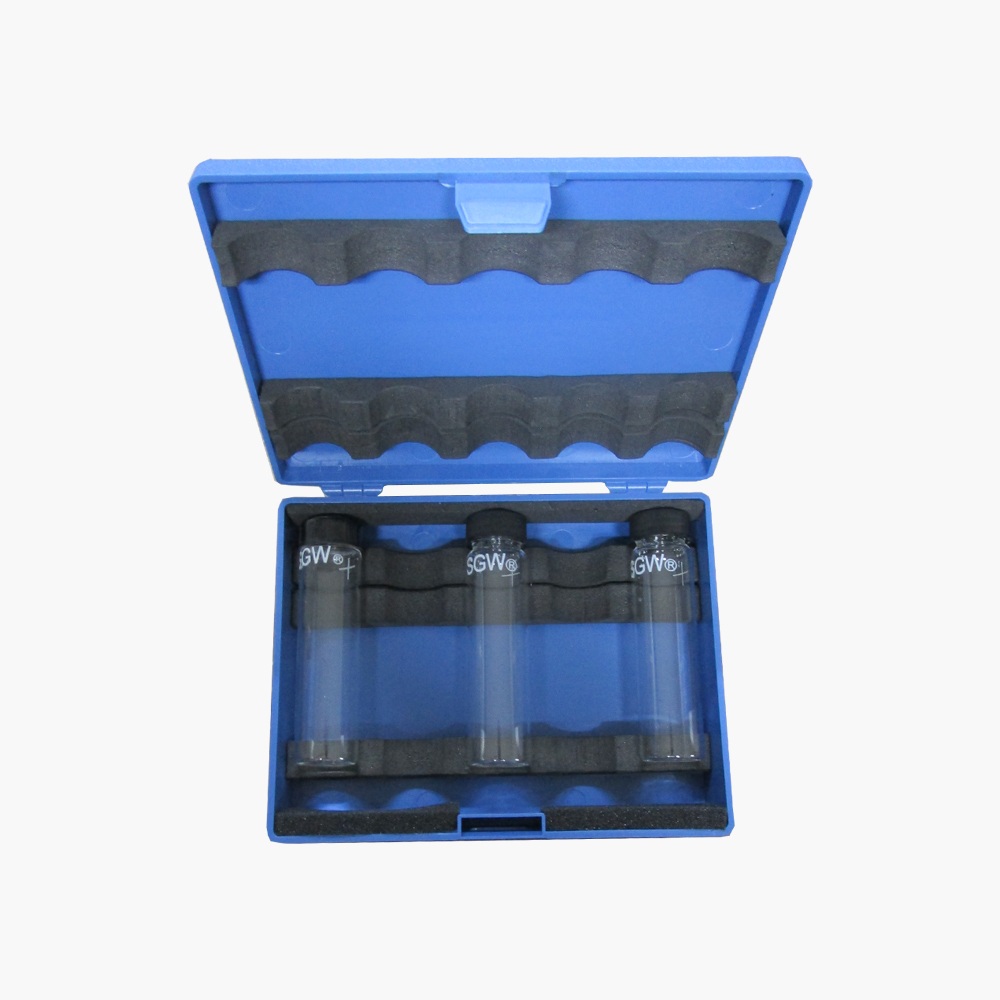

Sample case

CD-ROM

USB cable

Turbidimeter is used to measure the light scattering or attenuation generated by the insoluble particulate matter which is suspended in water (or clear liquid). This instrument can quantitatively characterize the content of the suspended particulate matter. It can be widely used in many field and industries, such as water, food, chemical, energy, metallurgy, pharmaceutical and environmental protection. WGZ-200 is commonly used in laboratory.



Key features:

1) Compact design for easy mobility.

2) LCD touch screen digital display.

3) Operation simple, friendly-to-user.

4) Data export through USB cable and software.

Lamp source: Tungsten halogen lamp, 6V, 10W

Measurement range: 0.00 NTU - 50.0 NTU; 50.1 NTU - 200 NTU (automatic range switch)

Relative error: < ±8%

Stability: < ±1% FS

Repeatability: ≤ 2%

Sample vial: Φ25 x 95 mm

Sample volume: 20 - 30 mL

Dimensions: 358 x 323 x 160 mm

Weight: 8 kg

Power: 30 W

Power supply: AC 110V, 60Hz
