Vertical Pressure Steam Sterilizer
CVQ-B75L

Vertical pressure steam sterilizer sterilizes medical devices, dressings, glassware, and solution media throughout saturated steam. It is a perfect equipment for the clinical institutions, hospitals, research institutes, etc.



Standard Accessories:

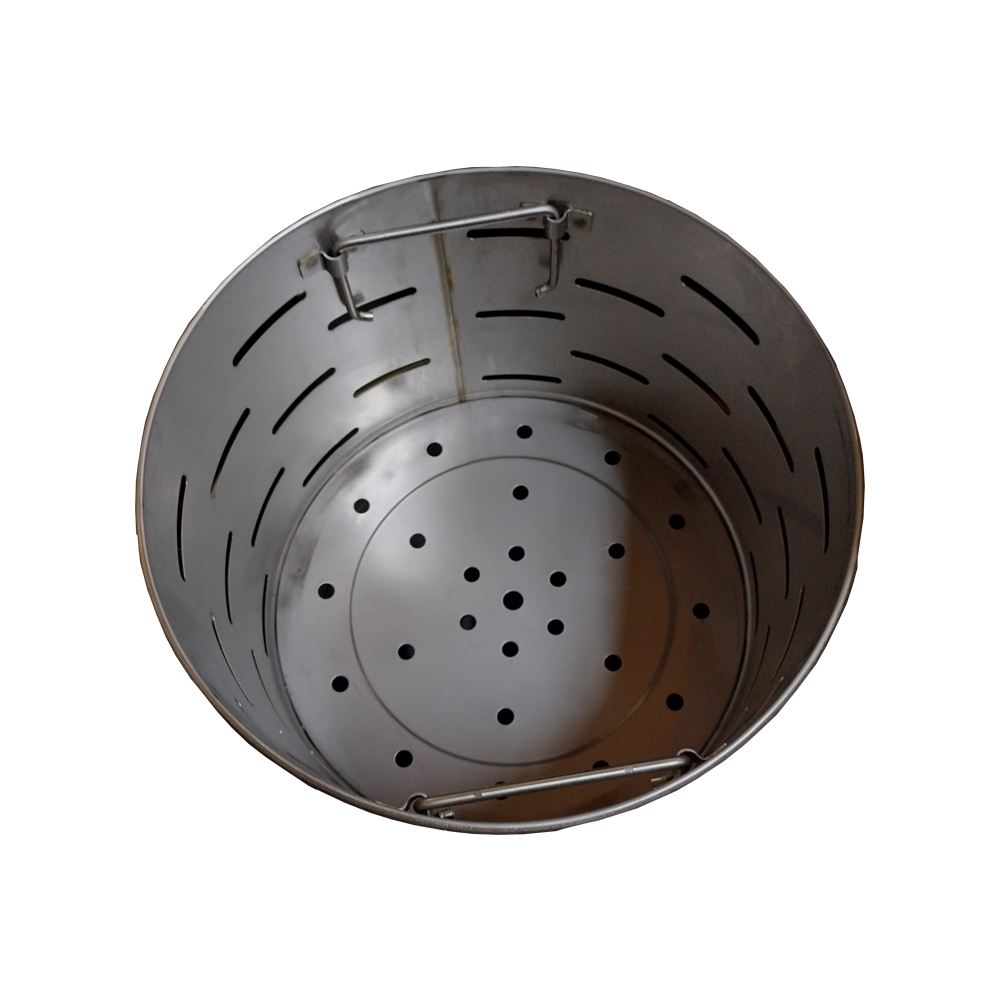

Sterilizing baskets

Sieve plate

Inner lid

Safety valve

Drain valve

The vertical pressure steam sterilizer is an equipment designed to sterilize articles using saturated steam through digitally controlled cycles. It is ideal for health institutions and universities that need to sterilize medical devices, dressings, glassware, and culture media.



Key features:

1) Intuitive control panel features soft-touch keys and a wide display for easy operation.

2) Built-in pressure gauge provides an additional reading of the internal pressure during the sterilization cycle.

3) Safety protections against overheating, overpressure, and lack of water are included.

4) Automatic lid lock that activates when the internal pressure exceeds 27 kPa to prevent accidental opening during operation.

5) Door safety lock system prevents the sterilization cycle from starting if the lid is not properly closed.

Capacity: 75 L

Maximum working pressure: 220 kPa

Maximum working temperature: 134°C

Timer range: 0 - 99 min

Container size: Ф400 x 600 mm

Overall dimensions: 550 x 530 x 1180 mm

Gross weight: 115 kg

Power: 4500 W

Power supply: 220V±22V, 60Hz±1Hz
