Vertical Pressure Steam Sterilizer
CVQ-B100L

Vertical pressure steam sterilizer sterilizes medical devices, dressings, glassware, and solution media throughout saturated steam. It is a perfect equipment for the clinical institutions, hospitals, research institutes, etc.



Standard Accessories:

Sterilizing baskets

Sieve plate

Inner lid

Safety valve

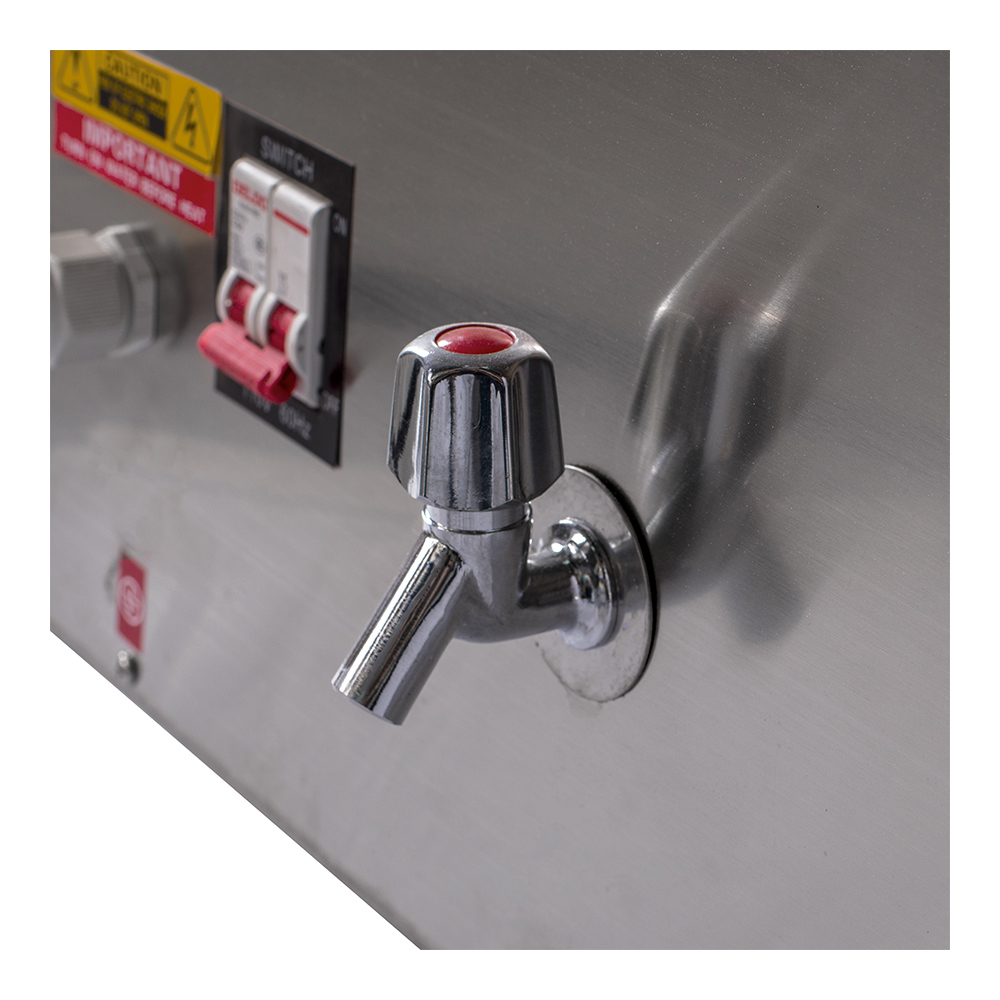

Drain valve

Vertical pressure steam sterilizer is an equipment that sterilize articles through saturated steam with digital controlled whole cycles. It is perfect for health institutions which sterilize medical devices, dressings, glassware, and solution media throughout saturated steam. This sterilizer cannot used to sterilize items which do not bear high temperature, high pressure or wet.



Key features:

1) Soft keyboard and easy-to-use.

2) Overheating and overcurrent protections, and for water lack.

3) Door is locked when pressure inner over 27kPa.

4) Cooling air release, timing, and alarm functions.

5) Integrated wheels for easy mobility.

Capacity: 100 L

Maximum working pressure: 220 kPa

Maximum working temperature: 134°C

Heat uniformity: ≤ ±1°C

Timer range: 0 - 99 min

Temperature range: 0 - 134°C

Container size: Ф430 x 685 mm

Overall dimensions: Approx. 530 x 530 x 1270 mm

Gross weight: 133 kg

Power: 4500 W

Power supply: AC 110V±22V, 60Hz±1Hz
