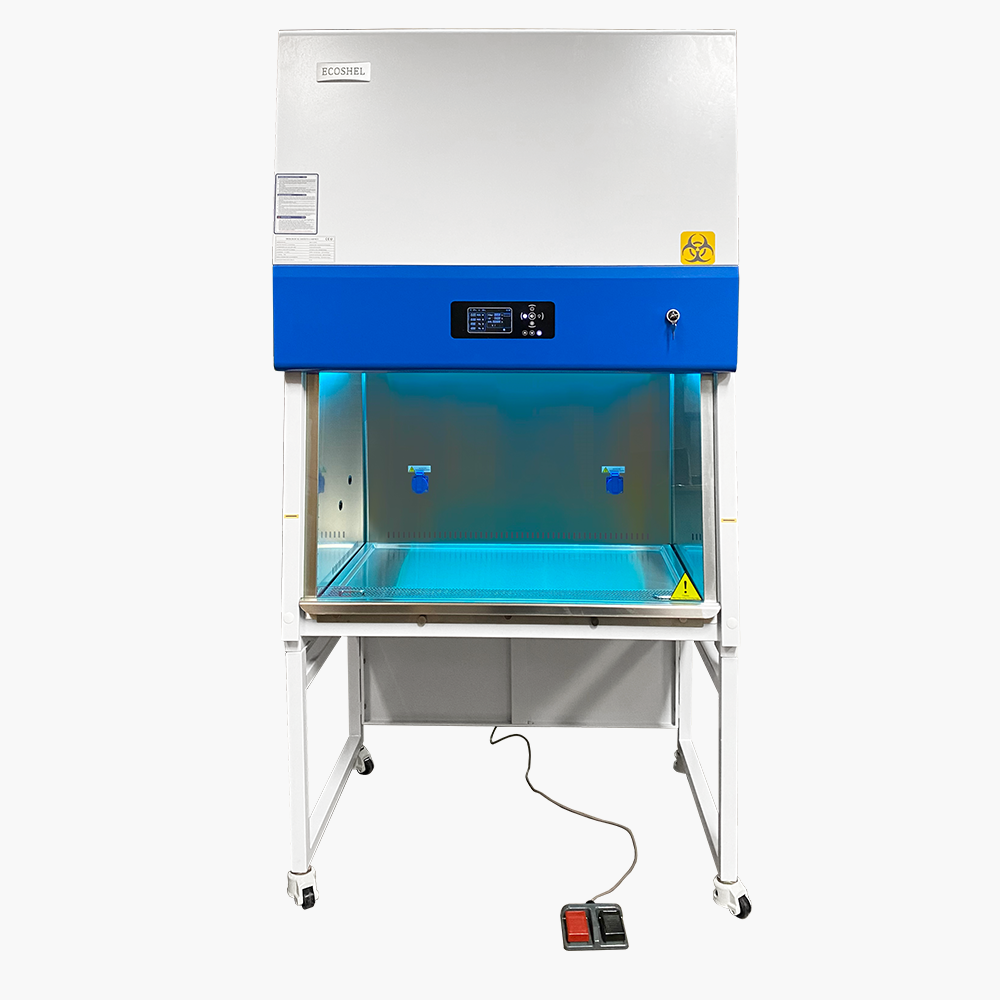

Class II A2 Biological Safety Cabinet
IIA2-XA

IIA2-XA is a Type A2 Biological Safety Cabinet provides protection operator, laboratory environment and samples. It is used in medical and health areas, pharmacy, medical research, etc.



Standard Accessories:

Base stand with footmaster caster

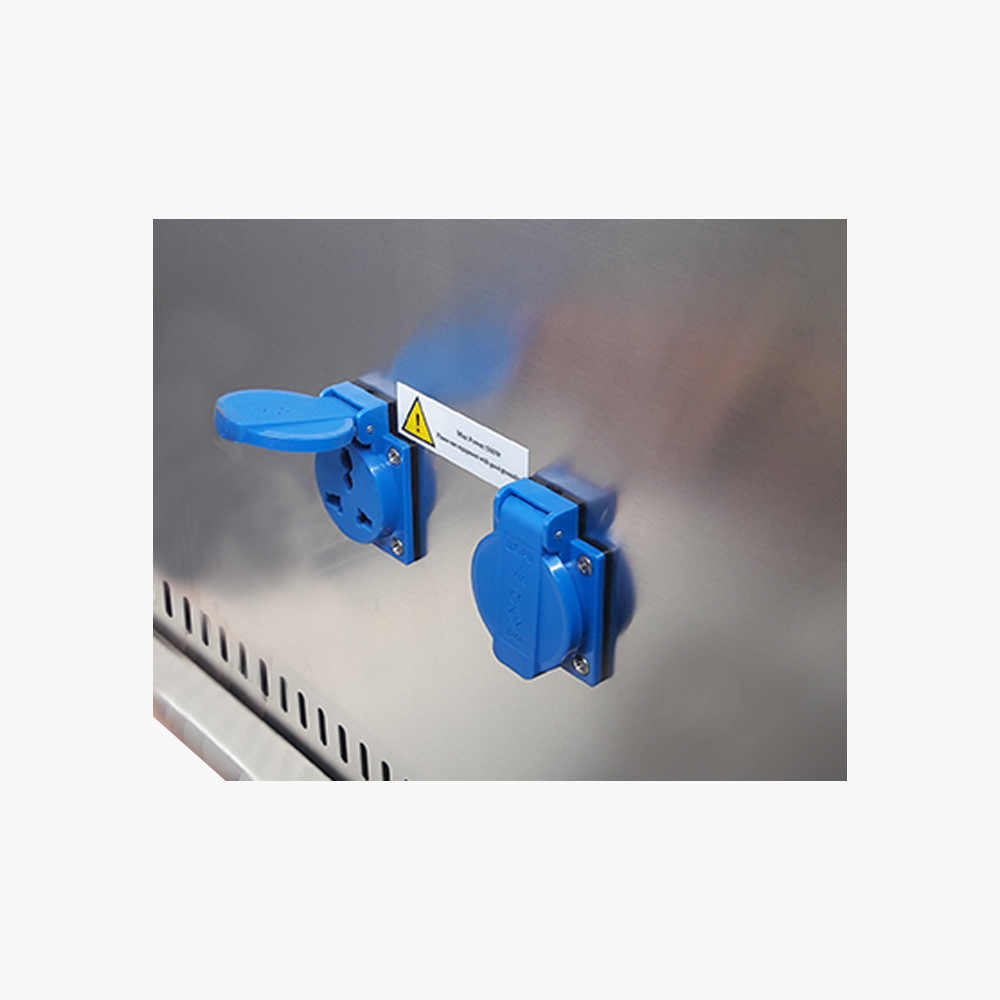

Waterproof sockets

Remote control

Keys

LED lamp

UV lamp

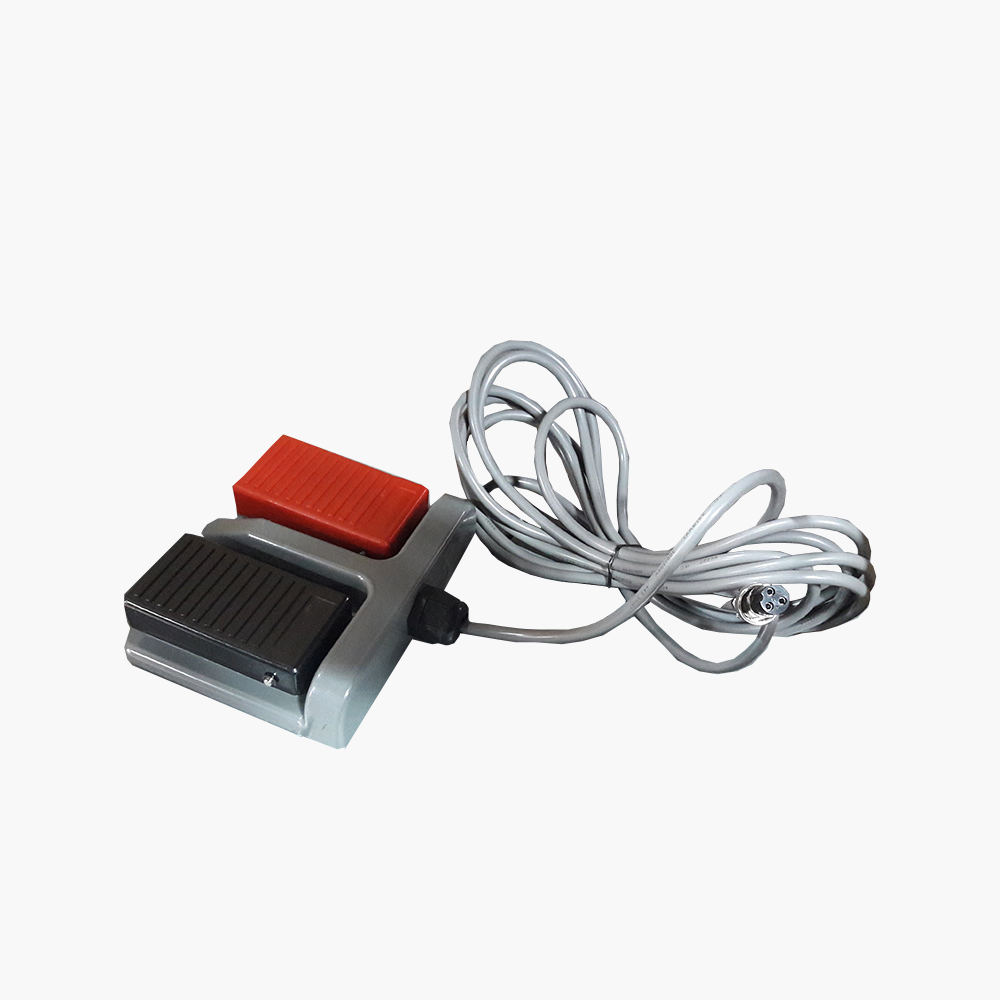

Foot switch



Optional Accessories: Gas tap and water tap.

Biological Safety Cabinet is necessary equipment in the laboratory when operator need to apply protective measures, such as in medical and health, pharmacy, medical research. This equipment provides a safety working environment through negative pressure filtration system for protecting operator, laboratory environment and work materials. Type A2 Cabinet is suitable for working with microbiological research in the absence of volatile or toxic chemicals and radionuclide.



Key features:

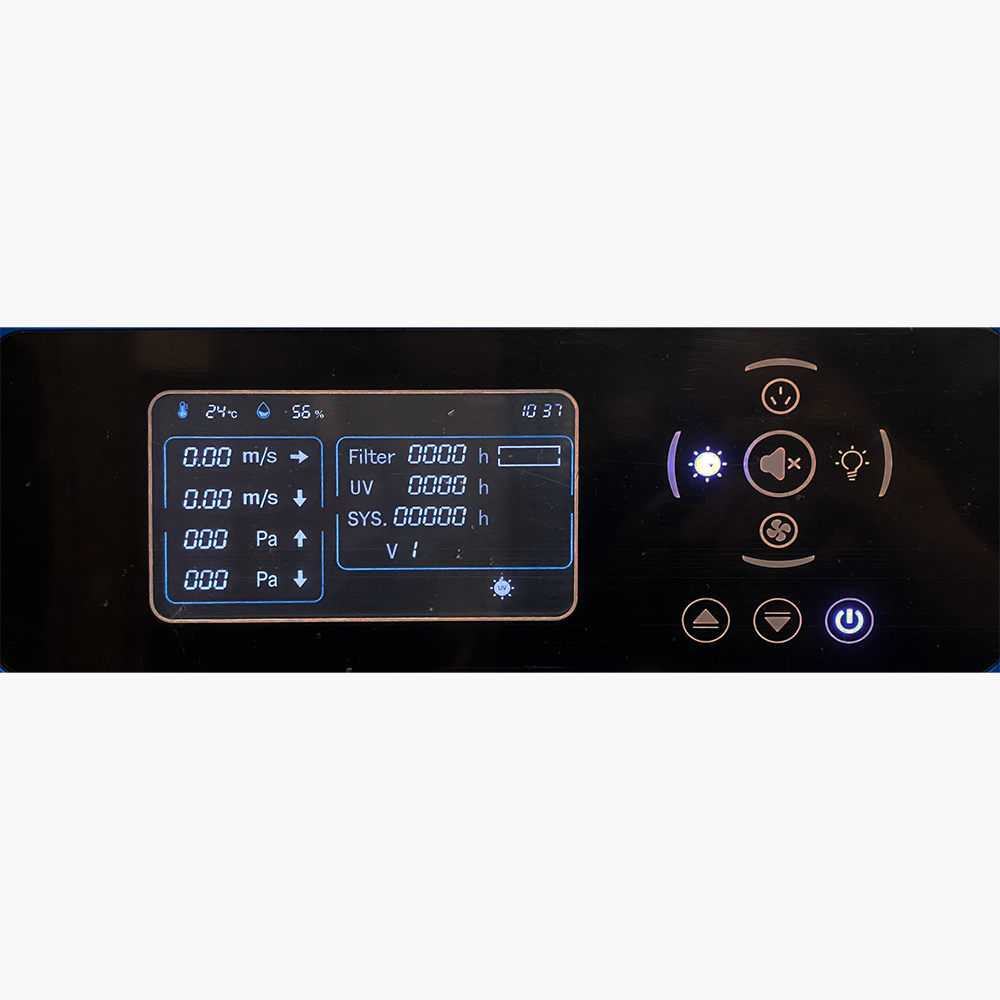

1) LCD screen and intuitive control panel.

2) Key switch to prevent access by unauthorized users.

3) Visual and audible alarms indicate when the filters need to be changed, when the front window is at an unsafe height, and when the airflow velocity is abnormal.

4) Automatic shutdown of the UV lamp when the front window is opened.

Work Surface Height: 750 mm

Inflow Velocity: 0.53 ± 0.025 m/s

Downflow Velocity: 0.33 ± 0.025 m/s

Airflow System: 70% air recirculation, 30% air exhaust

Front Window: Motorized, safety height: 200 mm

Two HEPA Filters, 99.995% efficiency at 0.3 µm

Noise: ≤65 dB

LCD display

30W UV Lamp, emission of 253.7 nm

12W LED Lamp

External Size: 1100 x 755 x 2200 mm

Internal Size: 940 x 600 x 660 mm

Gross Weight: 220 kg

Material:

Front Window: Laminated tempered glass

Work Zone: 304 stainless steel

Main Body and Base: Cold-rolled steel with anti-bacteria powder coating

Consumption: 600 W

Power Supply: AC 110V±10%, 60Hz
