Class II B2 Biological Safety Cabinet
IIB2-XB

IIB2-XB is a Type B2 Biological Safety Cabinet provides protection operator, laboratory environment and samples. It is used in medical and health areas, pharmacy, medical research, etc.



Standard Accessories:

Base stand with footmaster caster

Remote control

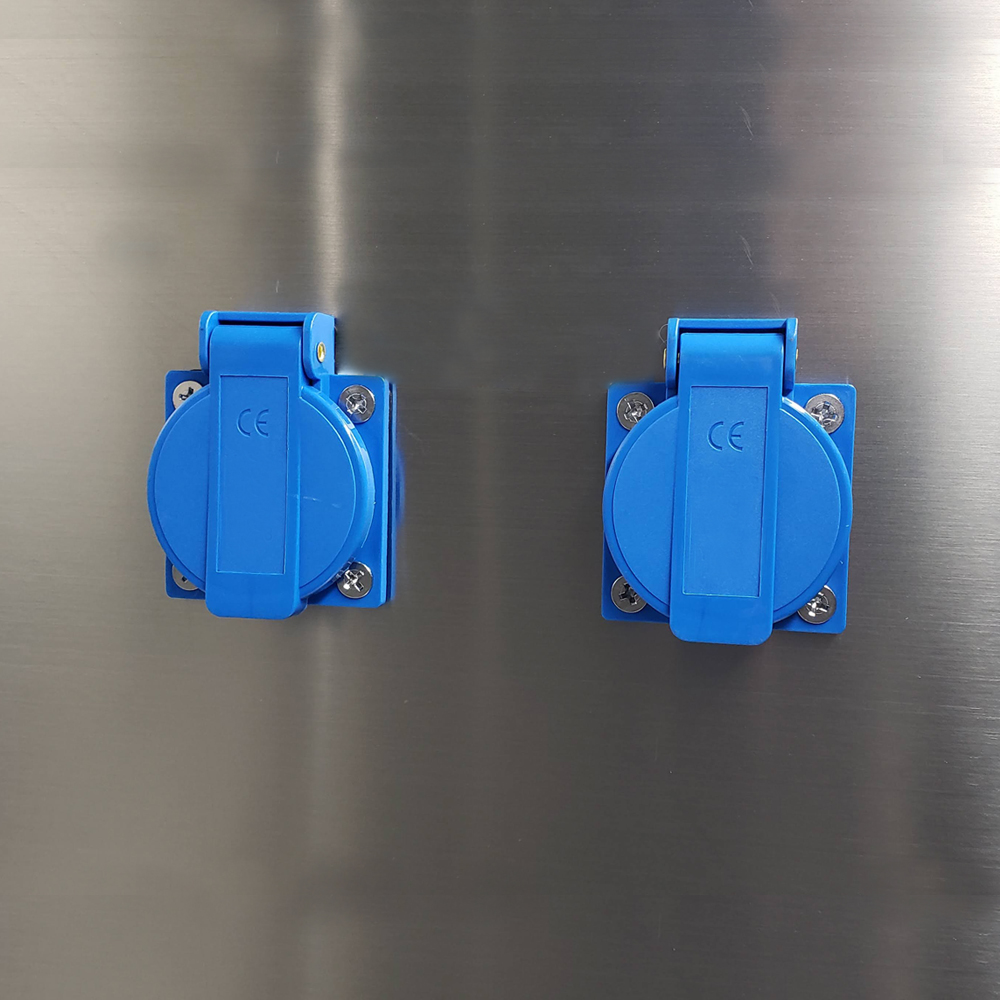

Waterproof sockets

Pipe straps

Exhaust blower and duct

LED lamp

UV lamp

Foot switch

Drain valve



Optional Accessories: Gas tap and water tap.

Biological Safety Cabinet is necessary equipment in the laboratory when operator need to apply protective measures, such as in microbiology, biomedical, DNA recombinant, animal experiment and biological products. This equipment provides a safety working environment through negative pressure filtration system for protecting operator, laboratory environment and work materials. Type B2 Cabinet, also called a total exhaust cabinet, is suitable when significant amounts of radionuclides and volatile chemicals are expected to be used.



Key features:

1) Intuitive control panel and soft keys.

2) Remote control: all functions can be realized with it, making the operation easier and more convenient.

3) Audio and visual alarm when filter replacement, front window at unsafe height and abnormal airflow velocity.

4) Interlock function: UV lamp and front window; UV lamp and blower; UV lamp and LED lamp; blower and front window.

5) Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.

Work Surface Height: 750 mm

Inflow Velocity: 0.53 ± 0.025 m/s

Downflow Velocity: 0.33 ± 0.025 m/s

Airflow System: 0% air recirculation, 100% air exhaust

Front Window: Motorized

Max Opening: 420 mm

Tested Opening: Safety height 200 mm

Pre-filter, washable

Two HEPA Filters, 99.999% efficiency at 0.3 µm

Noise: NSF49 ≤61 dB / EN12469 ≤58 dB

Illumination: ≥1000 Lux

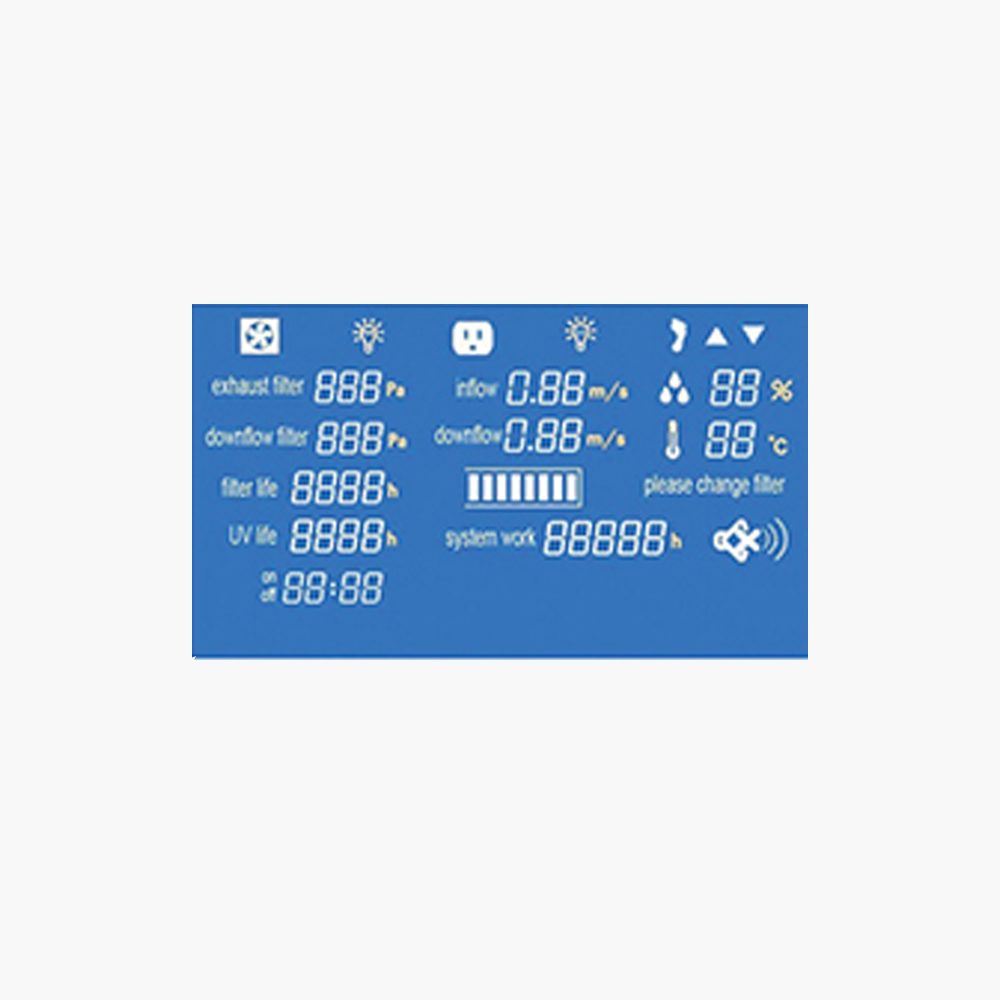

LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time, etc.

30W UV Lamp, emission of 253.7 nm

14W LED Lamp

External Size: 1300 x 750 x 2250 mm

Internal Size: 1150 x 600 x 660 mm

Gross Weight: 276 kg

Material:

Front Window: Two-layer laminated toughened glass ≥ 5 mm

Work Zone: 304 stainless steel

Main Body and Base: Cold-rolled steel with anti-bacteria powder coating

Consumption: 850 W

Power Supply: AC 110V±10%, 60Hz
