NSF-6 is a
Type A2 Biological Safety Cabinet provides protection operator, laboratory
environment and samples. It is used in medical and health areas, pharmacy,
medical research, etc.
Standard
Accessories:
Base stand
with footmaster caster
LED lamp
UV lamp
S.S. water
and gas taps
Stainless
steel I.V. bar with 10 hooks

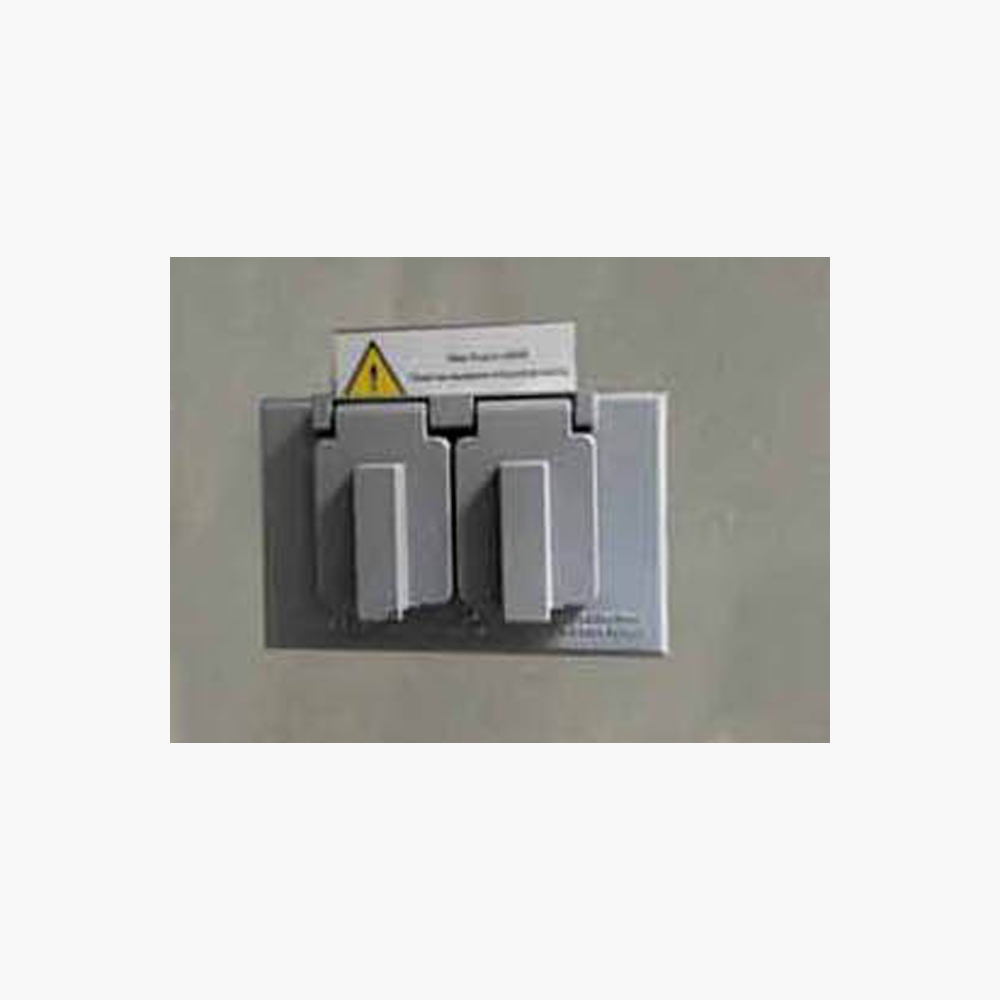

Waterproof
sockets
Drain valve
Optional Accessories: Remote control.
Biological
Safety Cabinet is necessary equipment in the laboratory when operator need to
apply protective measures, such as in medical and health, pharmacy, medical
research. This equipment provides a safety working environment through negative
pressure filtration system for protecting operator, laboratory environment and
work materials. Type A2 Cabinet is suitable for working with microbiological
research in the absence of volatile or toxic chemicals and radionuclide.
Key features:
1) Intuitive control panel and soft keys.
2) Visual and audio alarm when filter
replacement, front window at unsafe height and abnormal airflow velocity.
3) Interlock
function: UV lamp and front window; UV lamp and blower; UV lamp and LED lamp;
blower and front window.
4) Front 10° slanted to offer operator comfort while working for long time, reduce glare and maximize reach into the work area.
Work Surface Height: 750 mm
Inflow Volume: 649 m3/h
Downflow Volume: 60%: 1212 m3/h
Exhaust
Volume: 40%: 649 m3/h
Airflow System: 60% air recirculation, 40% air exhaust
Front Window: Motorized
Max Opening: 550 mm
Tested Opening: Safety height 200 mm
Two HEPA Filters,
99.999% efficiency at 0.3 µm
Noise: NSF 49 ≤61dB / EN 12469 ≤58dB
Illumination: ≥1000 Lux
LCD display: exhaust filter and downflow filter pressure, filter
and UV lamp working time, inflow and downflow velocity, filter life, humidity
and temperature, system working time, etc.
40W UV Lamp, emission
of 253.7 nm
22W LED Lamp
External Size: 1873 x 775 x 2295 mm
Internal Size: 1700 x 600 x 660 mm
Gross Weight: 363 kg
Material:
Front Window: Two-layer laminated toughened glass ≥ 5 mm
Work Zone: 304 stainless steel (S.S.)
Main Body and Base: Cold-rolled steel with anti-bacteria powder coating
Consumption: 500 W
Power Supply: AC 110V±10%, 60Hz
