This is an improved
model of IIA2. It is a Type A2 Biological Safety Cabinet provides protection
operator, laboratory environment and samples in medical and health areas,
pharmacy, medical research, etc.
Standard Accessories:
Waterproof
sockets
Remote
control
Removable
handles
LED lamp
UV lamp
Drain valve
Optional Accessories: Base stand, gas tap and water tap.
Biological
Safety Cabinet is necessary equipment in the laboratory when operator need to
apply protective measures, such as in medical and health, pharmacy, medical
research. This equipment provides a safety working environment through negative
pressure filtration system for protecting operator, laboratory environment and
work materials. Type A2 Cabinet is suitable for working with microbiological
research in the absence of volatile or toxic chemicals and radionuclide.
Key features:
1) Intuitive control panel to set automatic
power on/off for fan, socket, light and UV lamp.

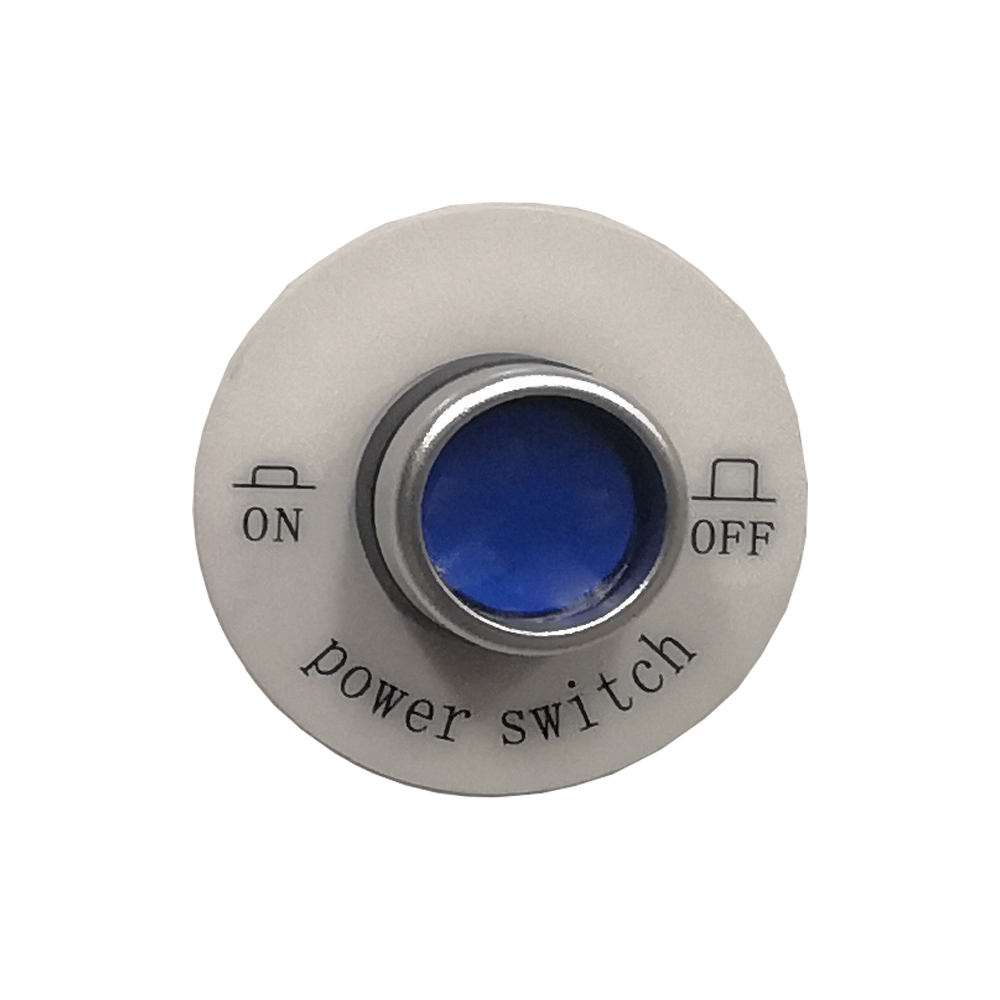

2) Self-locking button switch to solve the
trouble of losing the key.
3) Removable
handle design, easy to move.
4) Visual and
audio alarm when filter replacement, front window at unsafe height, abnormal
airflow velocity and high filter pressure.
5) Interlock
function: UV lamp and front window; UV lamp and blower; UV lamp and LED lamp;
blower and front window.
6) Disinfection
function: UV lamp will turn on and automatically turn off after 30 minutes.
7) Small dimension, save space.
Inflow Velocity: 0.53 ± 0.025
m/s
Downflow Velocity: 0.33 ± 0.025
m/s
Airflow System: 70% air
recirculation, 30% air exhaust
Front Window: Motorized
Max Opening: 370 mm
Tested Opening: Safety height
200 mm
Two HEPA Filters, 99.995% efficiency at 0.3 µm
Noise: ≤67 dB

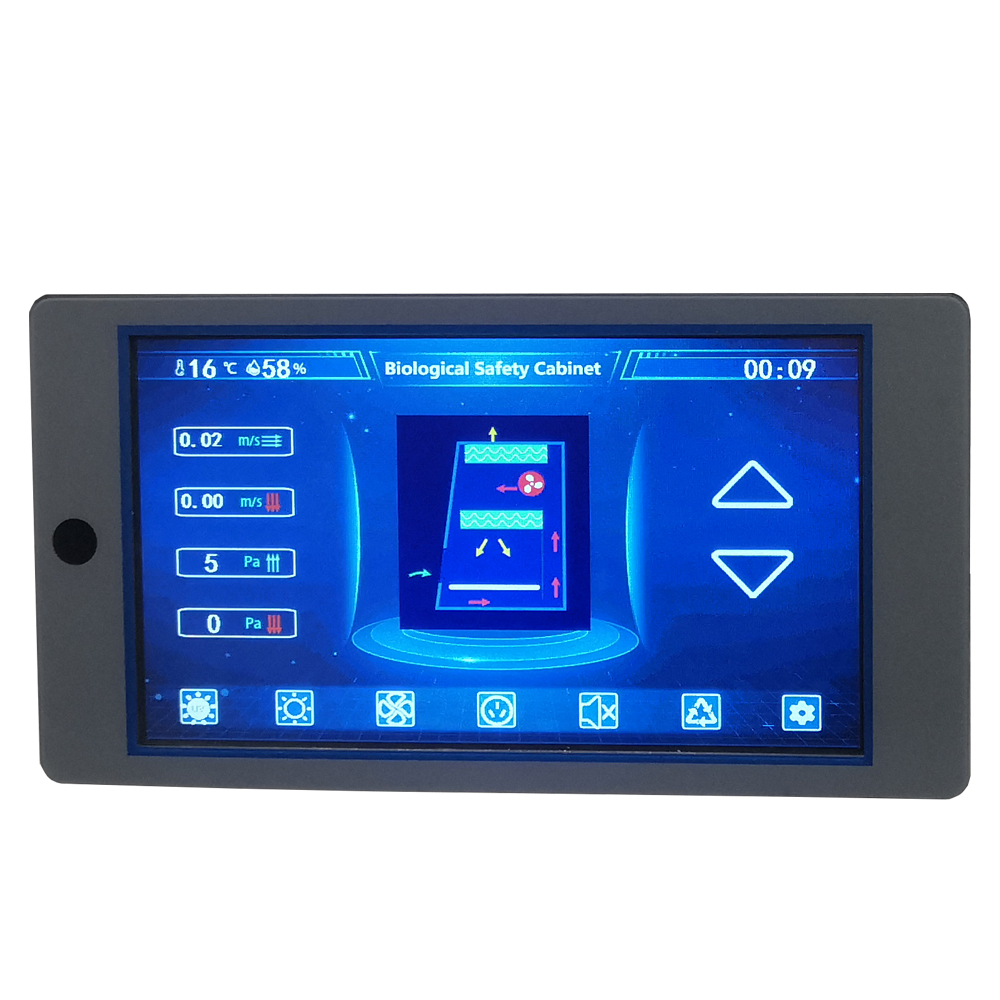

LCD display: Large touch
screen with intelligent control system which can check detailed status of the
cabinet, such as inflow and downflow velocity, work area temperature and
humidity, filter pressure, UV working time and filter working time, filter, and
UV life indicators, etc.
15W UV Lamp, emission of 253.7 nm
8W LED Lamp
Work Surface Height: 750 mm with
optional base stand
External Size: 700 x 650 x
1230 mm
Internal Size: 600 x 500 x 540
mm
Gross Weight: 140 kg
Material:
Front Window: Toughened
glass ³ 5 mm
Work Zone: 304 stainless steel
Main Body: Cold-rolled steel
with anti-bacteria powder coating
Consumption: 500 W
Power Supply: AC 110V±10%, 60Hz
