Class III Biological Safety Cabinet
IIIA3-X

Class III Biological Safety Cabinet has supply and exhaust air filtered with ULPA filters, and suitable for work involving high risk pathologic agents. It is designed to protect the operator, laboratory environment and samples.



Standard Accessories:

Gloves

UV lamp

Fluorescent lamp

Remote control

Pressure meter

Drain valve

Class III Biological Safety Cabinet (BSC) is totally enclosed with supply and exhaust air filtered with ULPA filters, and suitable for work involving high risk pathologic agents (Biosafety Levels 3 and 4). The work is performed with enclosed long-sleeved gloves built-in the cabinet. The cabinet is kept under negative pressure of at least 120 Pa. Supply air is filtered before entering to the cabinet while exhaust air is double filtered before exit to outdoor. This equipment is designed to protect the operator, laboratory environment and work materials. It can avoid the operator to contact with potentially dangerous aerosols and spills therefore it is suitable for high-risk biological testing.



Key features:

1) Easy-to-use soft keys of control panel.

2) Audio and visual alarm when filter replacement and abnormal pressure.

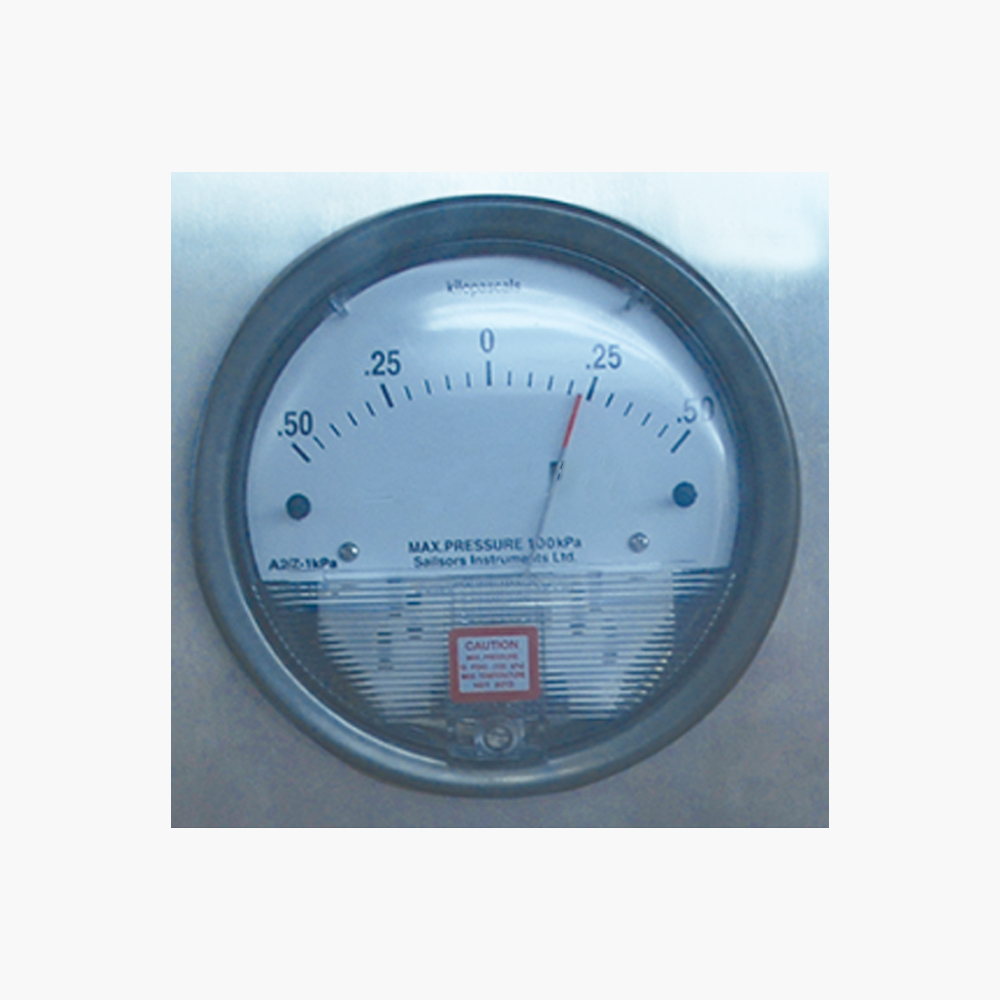

3) Pressure meter: display the pressure of work zone.

4) An angled cabinet front ensures an ergonomic working posture.

5) Pass box: double doors with interlock function and UV lamp.

Work Surface Height: 720 mm

Polyester fiber pre-filter, washable

ULPA Filter:

Air supply filter: Efficiency 99.999% at 0.12 µm

Firs exhaust filter: Efficiency 99.999% at 0.12 µm

Second exhaust filter: Efficiency 99.999% at 0.12 µm

Noise: NSF 49 ≤61 dB / EN 12469 ≤48 dB

Illumination: ≥1000 Lux

Pressure: ≥ negative 120 Pa

LCD display: Easy to monitor pressure parameters for work zone and three filters.

30W UV Lamp, emission of 253.7 nm

16W Fluorescent Lamp

External Size: 1790 x 880 x 2080 mm

Internal Size: 1165 x 650 x 660 mm

Pass Box:

- Internal Size: 430 x 330 x 355 mm

- External Size: 575 x 425 x 495 mm

- 8W UV Lamp, emission of 253.7 nm

Gross Weight: 450 kg

Material:

Front of BSC: 8 mm toughened glass, anti-UV

Work Zone: 304 stainless steel

Gloves: One pair of 800 mm butyl rubber gloves

Main Body and Base: Cold-rolled steel

Consumption: 1300 W

Power Supply: AC 110V±10%, 60Hz
