Pathology Workstation
QCT-1000

Pathological workstation is used in hospital pathology department, histology laboratory, etc. Its ventilation system protects operator away from the harmful fumes produced by the formalin during tissue sampling.



Standard Accessories:

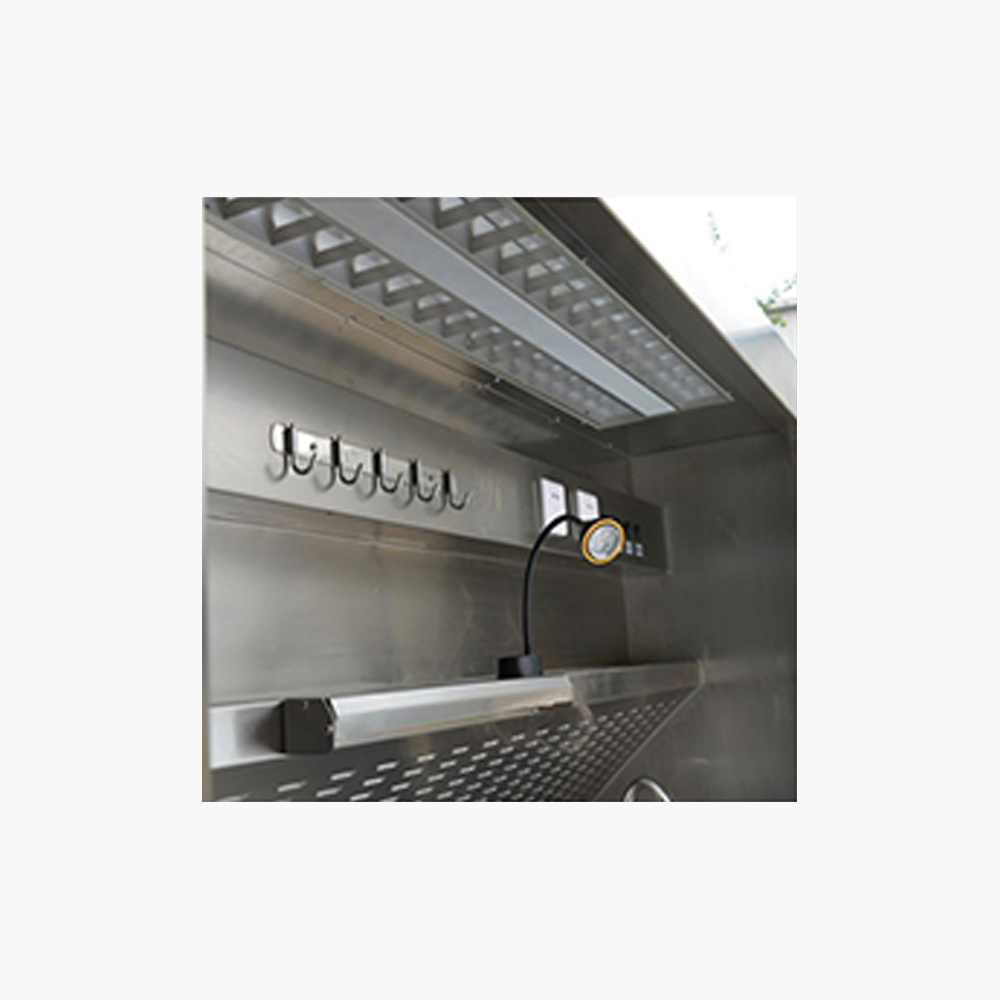

Adjustable spotlight

UV lamp

LED lamp

Waterproof sockets

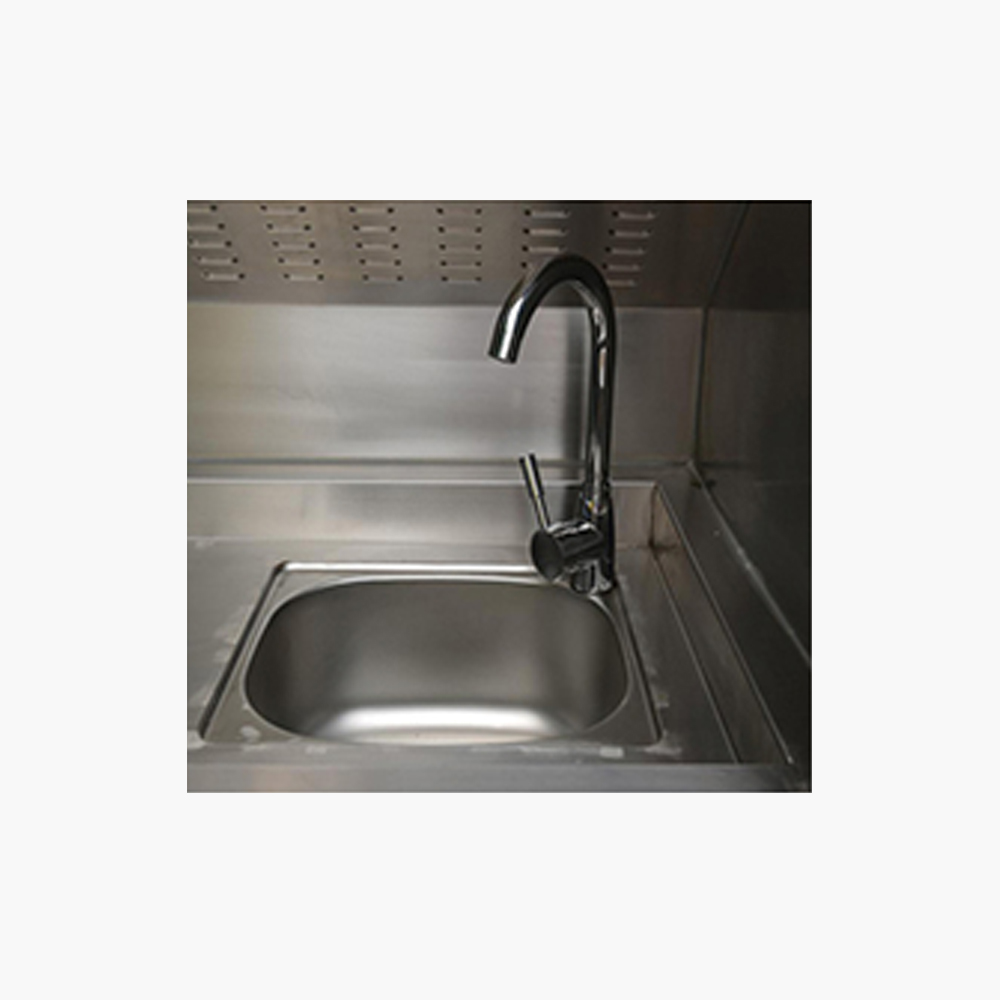

S.S. water sink and tap

S.S. hangers

Active carbon filter

Pipe strap

Exhaust duct



Optional Accessories: Pulverizer, electrical water heater, automatic induction hand dryer, eye washer, camera, flex magnifier light and laptop bracket.

Pathological workstation is widely used in hospital pathology department, pathology laboratory, etc. Its ventilation system protects operator away from the harmful fumes produced by the formalin during sampling. The hot and cold-water system ensures it can adapt work in different climates. It is reliable quality, elegant appearance and fully functional, and equipped with high quality parts.



Key features:

1) Suction inlet adopts louver-type. The upper mouthing structure ensures above blower suction, avoiding air back-streaming.

2) Automatic flushing device, slightly right-side inclined worktable, easy to discharge of waste and cleaning.

3) Base cabinet is inward-concave type, convenient for sitting operation.

4) Exhaust air system, high-power suction device, low noise.

5) Optional pulverizer can completely smash the waste during test, to avoid blocking drainage pipes.

Work Surface Height: 900 mm

Exhaust Airflow Volume: 500-600 m3/h

15W UV Lamp, emission of 253.7 nm

9W LED Lamp

Additional Illumination: 5W LED gooseneck spotlight

External Size: 1000 x 750 x 1950 mm

Working Area Size: 895 x 430 x 900 mm

Gross Weight: 250 kg

Material:

Work Table: 304 stainless steel (S.S.)

Main Body: 304 S.S.

Consumption: 250 W

Power Supply: AC 110V±10%, 60Hz
