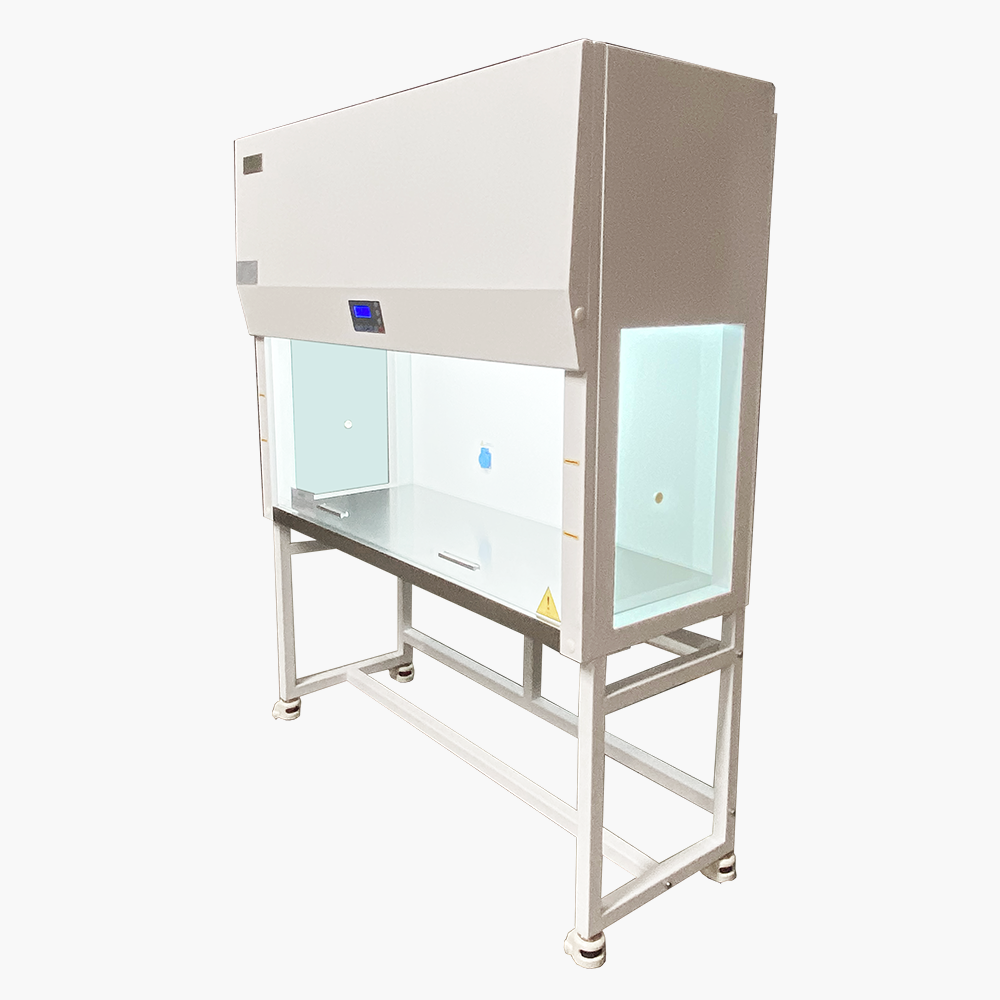

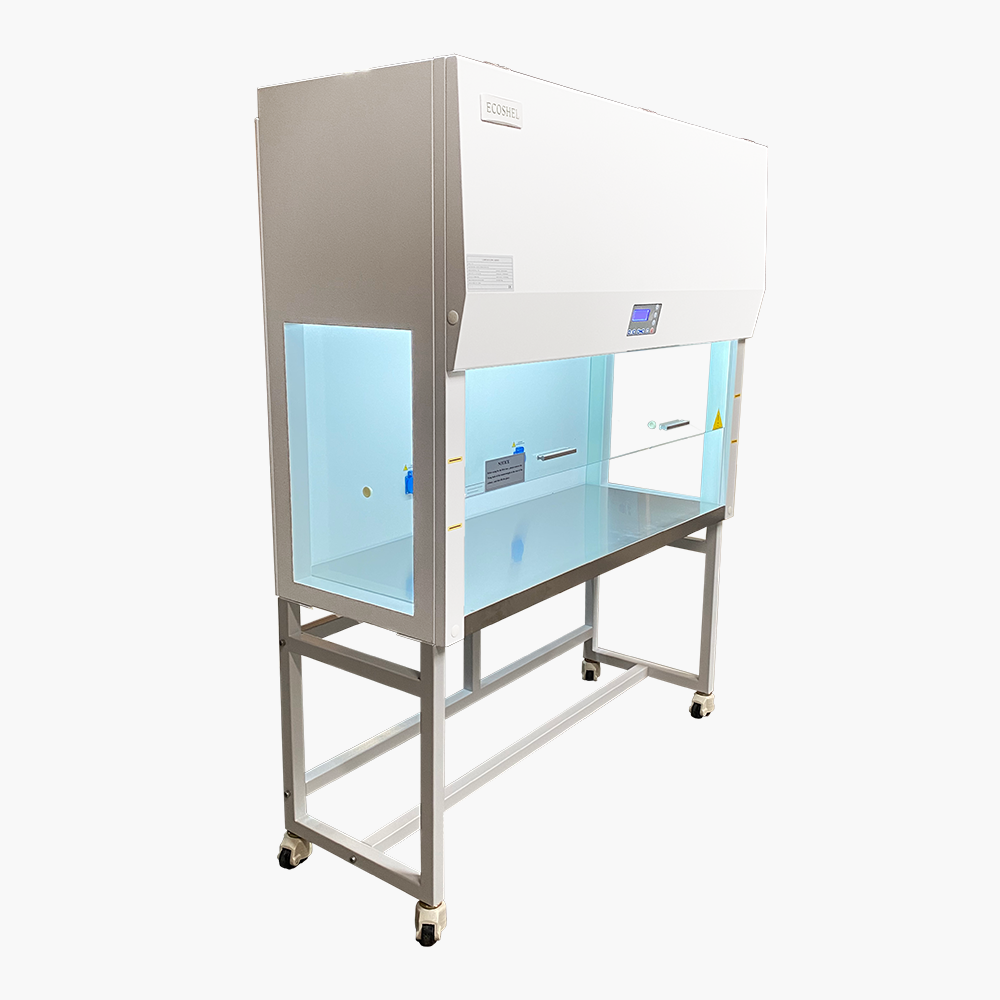

Vertical Laminar Flow Cabinet
CV-1B

Laminar flow cabinets are designed to protect samples and create partial particles-free environment by taking air though a filtration system and exhausting it across a work surface in a laminar air stream.



Standard Accessories:

Base stand with footmaster casters

LED lamp

UV lamp

Laminar flow cabinets are designed to protect samples and create partial particles-free environment by taking air though a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The main function is to make sure the accuracy of experiment at the operating area, so it is only for sample protection. However, it could not protect the environment or operators. This model is vertical type Laminar Flow Cabinet.



Key features:

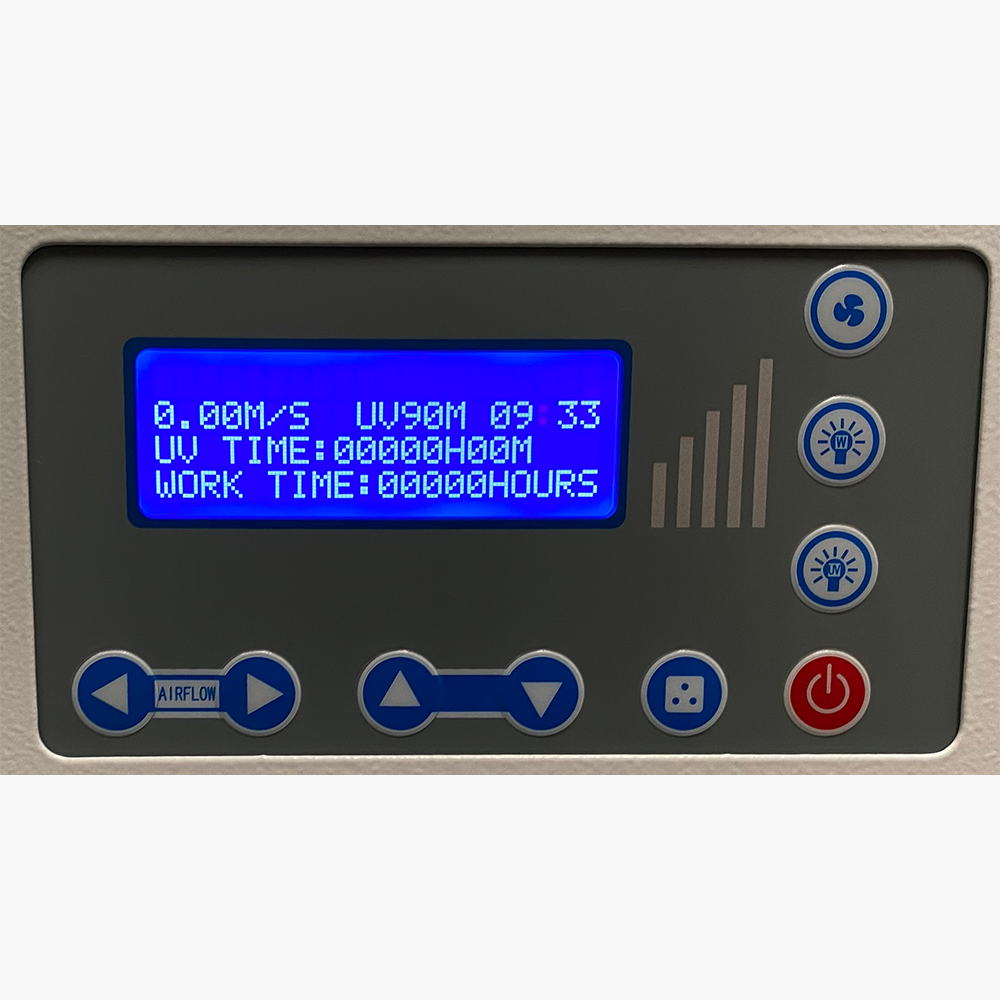

1) Intuitive control panel and soft keys.

2) Transparent side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.

3) LCD Display: airflow velocity, UV timer, system work time and LED light.

Work Surface Height: 750 mm

Airflow Velocity: 0.3-0.45 m/s, air speed adjustable

Front Window: Manual

Max Opening: 400 mm

HEPA Filter, 99.995% efficiency at 0.3 µm

Polyester fiber pre-filter, washable

Noise: <65 dB

20W UV Lamp, emission of 253.7 nm

12W LED Lamp

External Size: 1060 x 620 x 1850 mm

Internal Size: 935 x 530 x 650 mm

Gross Weight: 177 kg

Material:

Front Window: 5 mm toughened glass

Work Table: 304 stainless steel

Main Body and Base: Cold-rolled steel with anti-bacteria powder coating

Consumption: 150 W

Power Supply: AC 110V±10%, 60Hz
