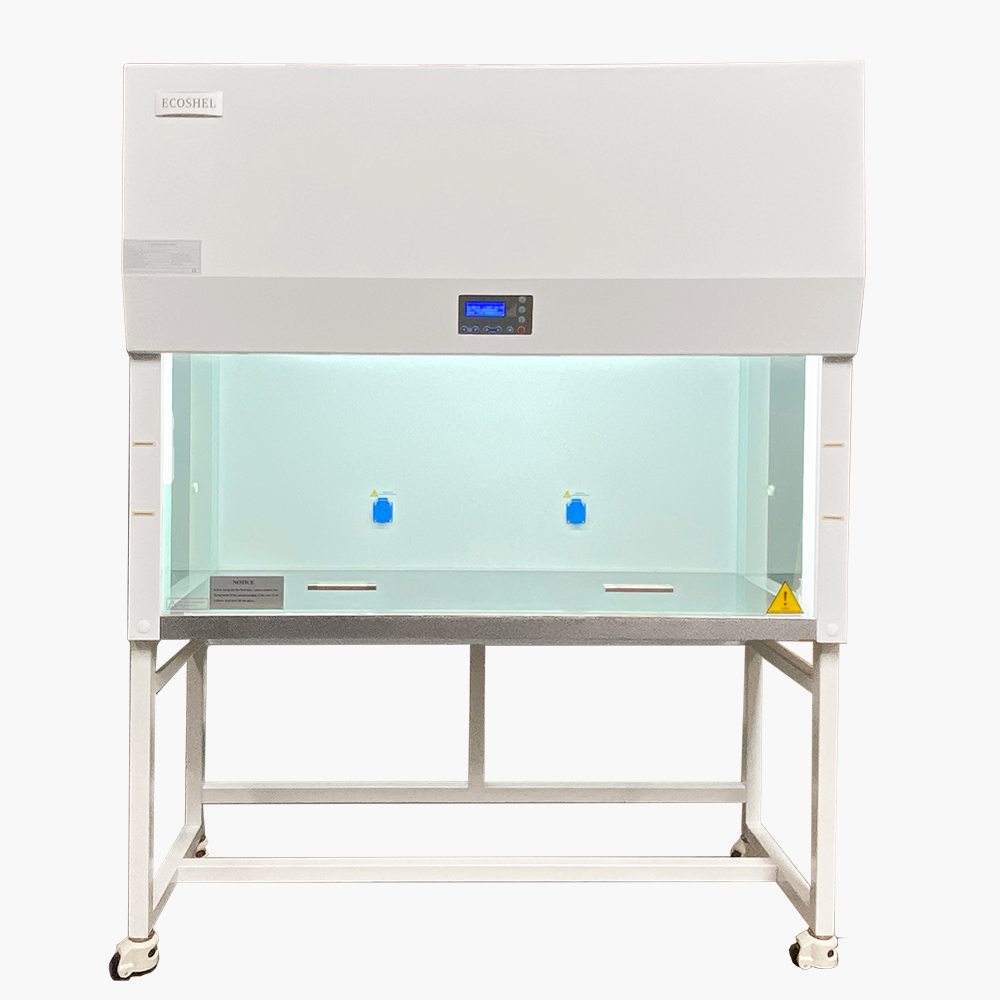

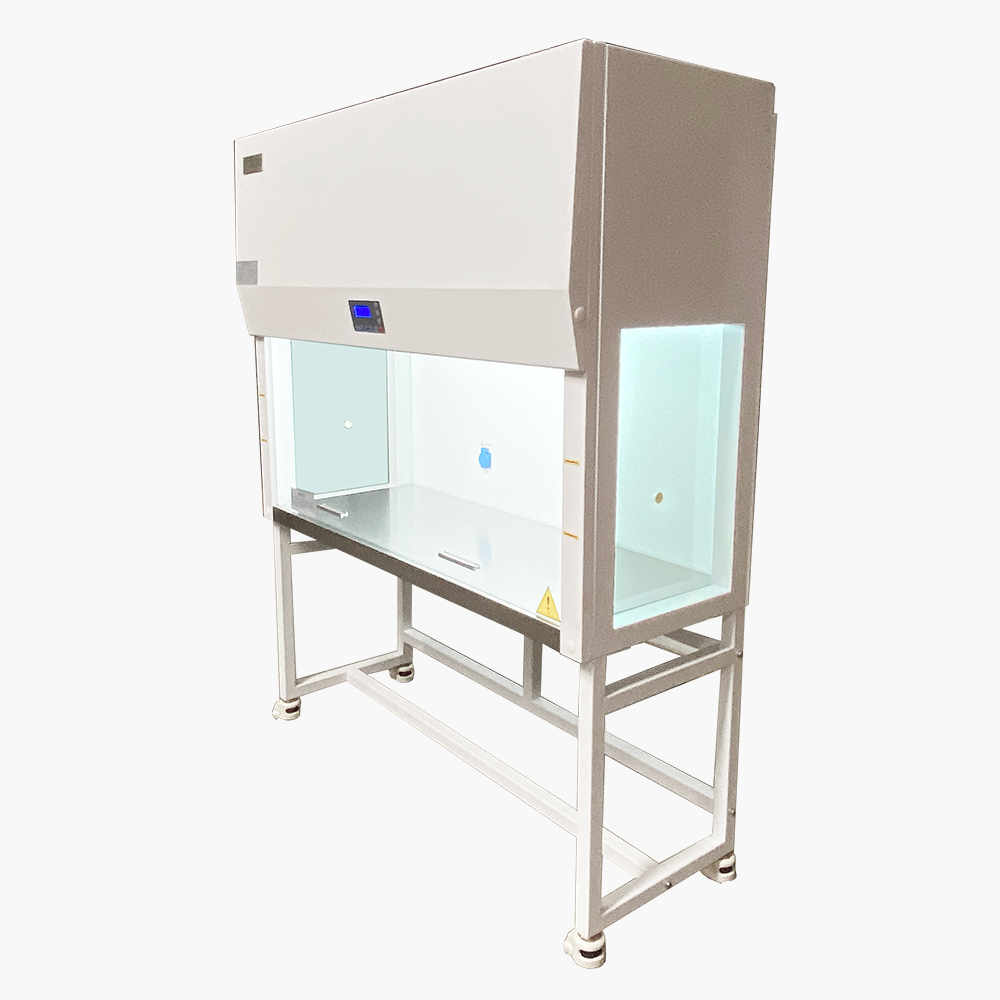

Vertical Laminar Flow Cabinet
CV-1C

Laminar flow cabinets are designed to protect samples and create partial particles-free environment by taking air though a filtration system and exhausting it across a work surface in a laminar air stream.



Standard Accessories:

Base stand

LED lamp

UV lamp

Laminar flow cabinets are designed to protect samples and create partial particles-free environment by taking air though a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The main function is to make sure the accuracy of experiment at the operating area, so it is only for sample protection. However, it could not protect the environment or operators. This model is vertical type Laminar Flow Cabinet.



Key features:

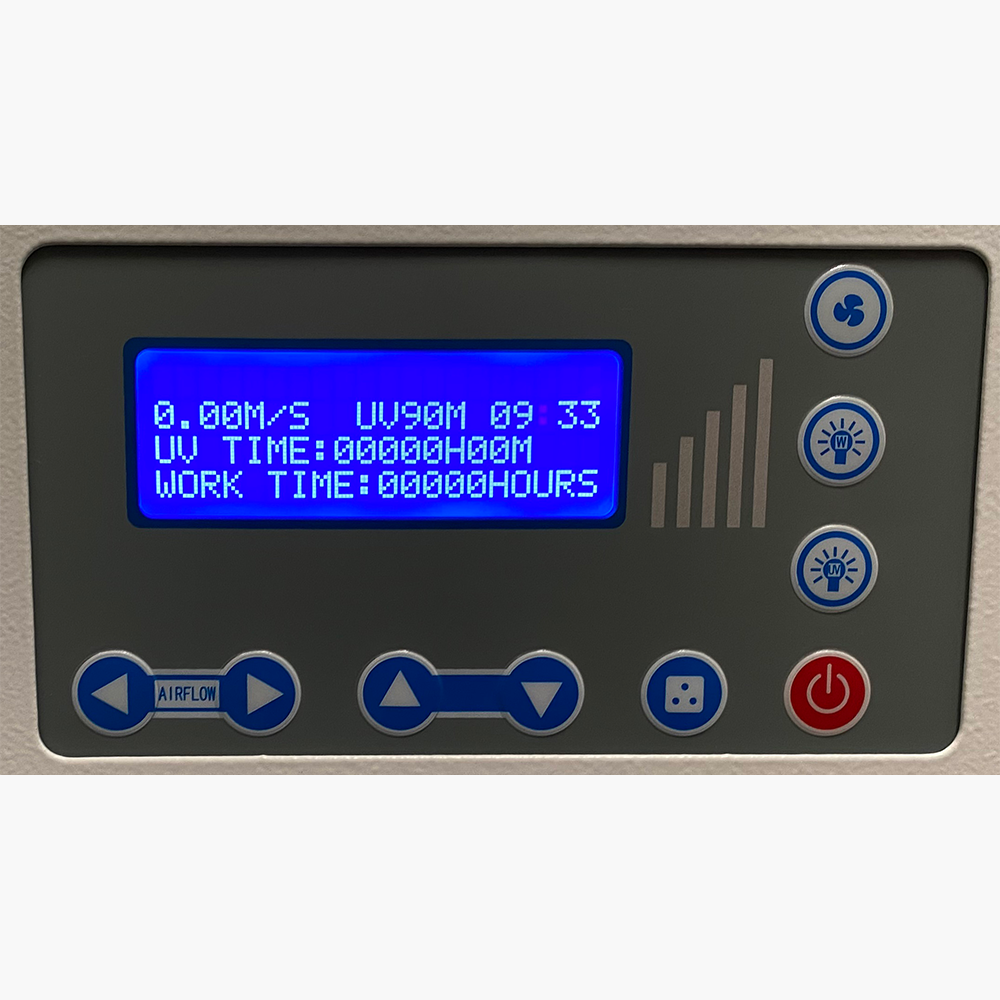

1) Intuitive control panel and soft keys.

2) Universal wheel with leveling feet.

3) Microprocessor control system, LED Display.

Work Surface Height: 750 mm

Airflow Velocity: 0.3-0.5 m/s, air speed adjustable

Front Window: Manual

Max Opening: 310 mm

HEPA Filter, 99.999% efficiency at 0.3 µm

Polyester fiber pre-filter, washable

Noise: <65 dB

30W UV Lamp, emission of 253.7 nm

16W LED Lamp

External Size: 1440 x 615 x 1770 mm

Internal Size: 1340 x 540 x 545 mm

Gross Weight: 174 kg

Material:

Front Window: 5 mm toughened glass

Work Table: 304 stainless steel

Main Body and Base: Cold-rolled steel with anti-bacteria powder coating

Consumption: 600 W

Power Supply: AC 110V±10%, 60Hz
