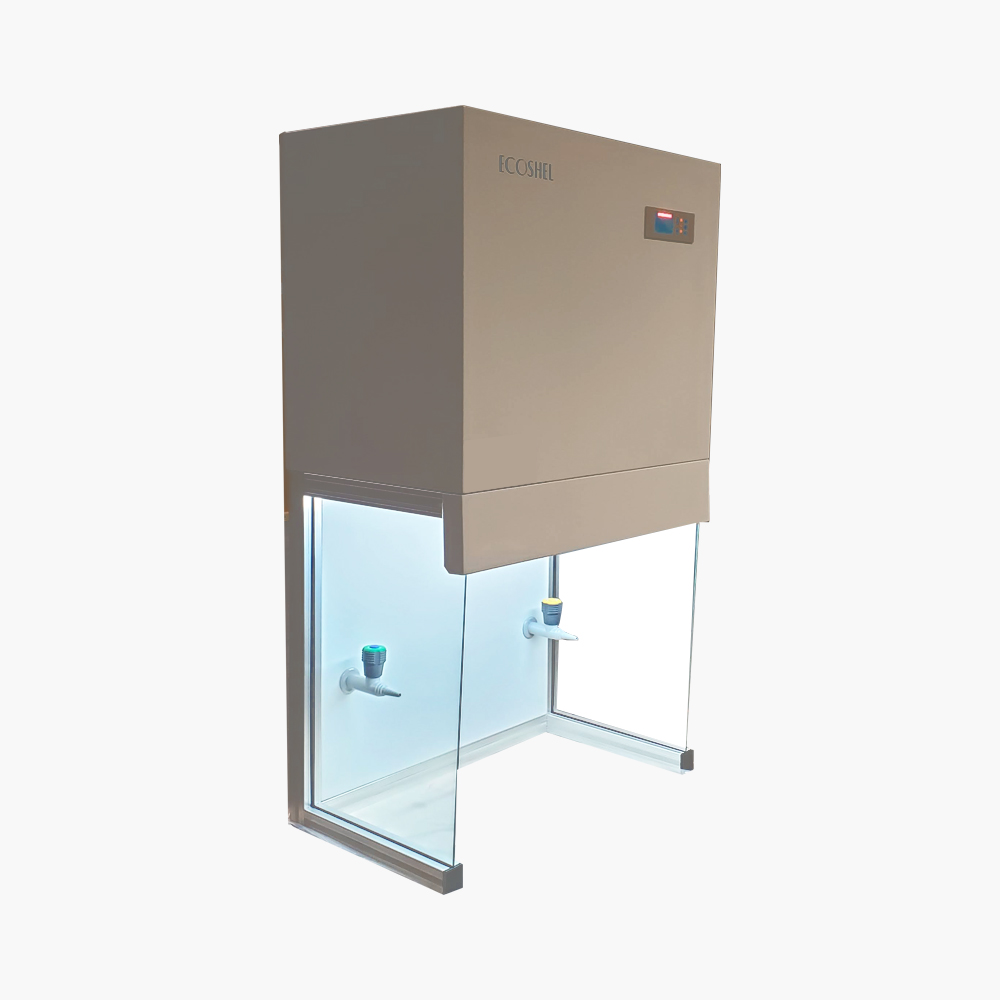

Vertical Laminar Flow Cabinet
CV-0

Laminar Flow Cabinet is used only for sample protection, but for the environment and operators cannot afford protection. It creates a particle-free working environment.



Standard Accessories:

Fluorescent Lamp

UV Lamp

Gas Tap

Water Tap

Laminar Flow Cabinet is used only for sample protection, but for the environment and operators cannot afford protection. It creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure to prevent the infiltration of contaminated room air. It is widely used in medical research laboratories, hospitals, manufacturing facilities and other research and production environment.



Key features:

1) Microprocessor control system, LED Display.

2) Compact design for easy mobility.

3) Intuitive control panel and soft keys.

Airflow Velocity: 0.3-0.5 m/s, air speed adjustable

HEPA Filter, 99.999% efficiency at 0.3 µm

Polyester fiber pre-filter, washable

Noise: <65 dB

15W UV Lamp, emission of 253.7 nm

14W Fluorescent Lamp

External Size: 680 x 410 x 1160 mm

Internal Size: 630 x 375 x 615 mm

Gross Weight: 50 kg

Material:

Main Body: Cold-rolled steel with anti-bacteria powder coating

Consumption: 160 W

Power Supply: AC 110V±10%, 60Hz
