Fume Hood
provides operator and environment protection from hazardous, corrosive and
toxic fumes which can be generated during chemical experiments, and to prevent
potentially dangerous substances from spreading into environment.
Standard
Accessories:
Active carbon
filter
Base stand
UV lamp
LED lamp

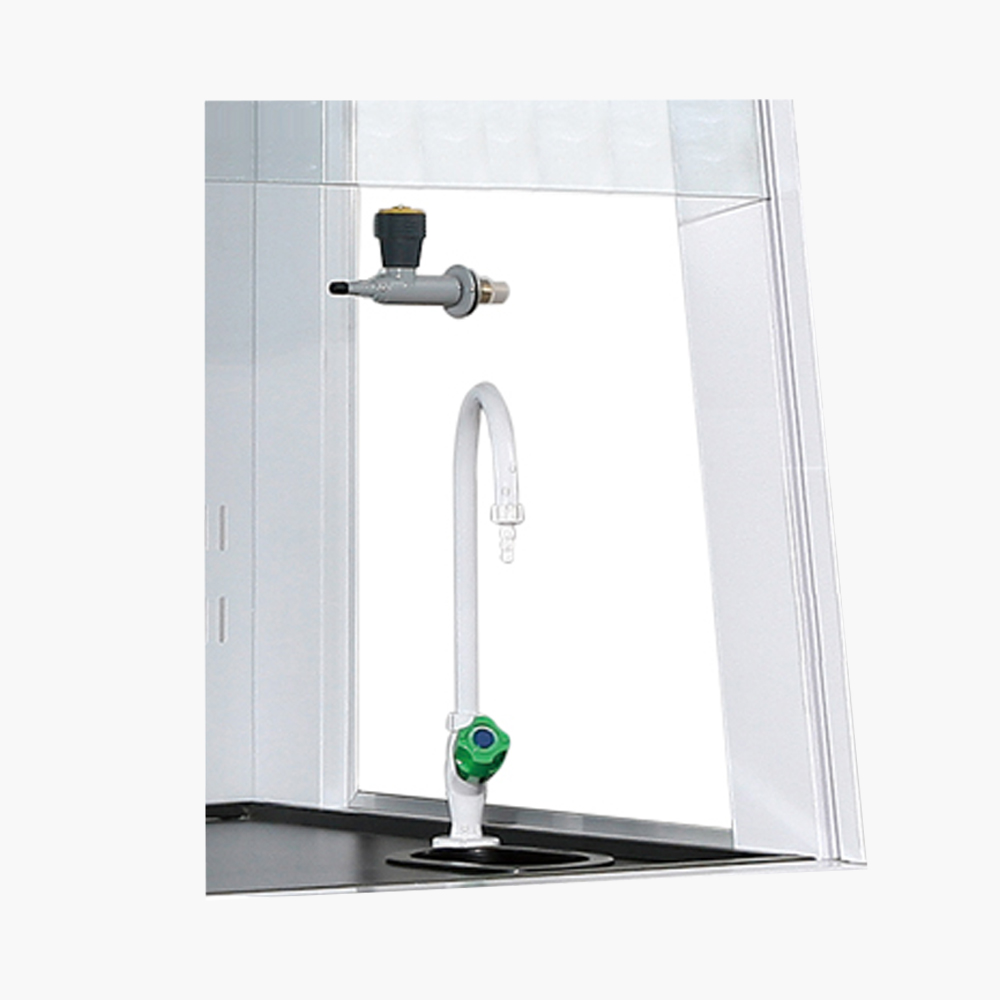

Water tap
Gas tap
Water sink
Pipe strap
Exhaust duct

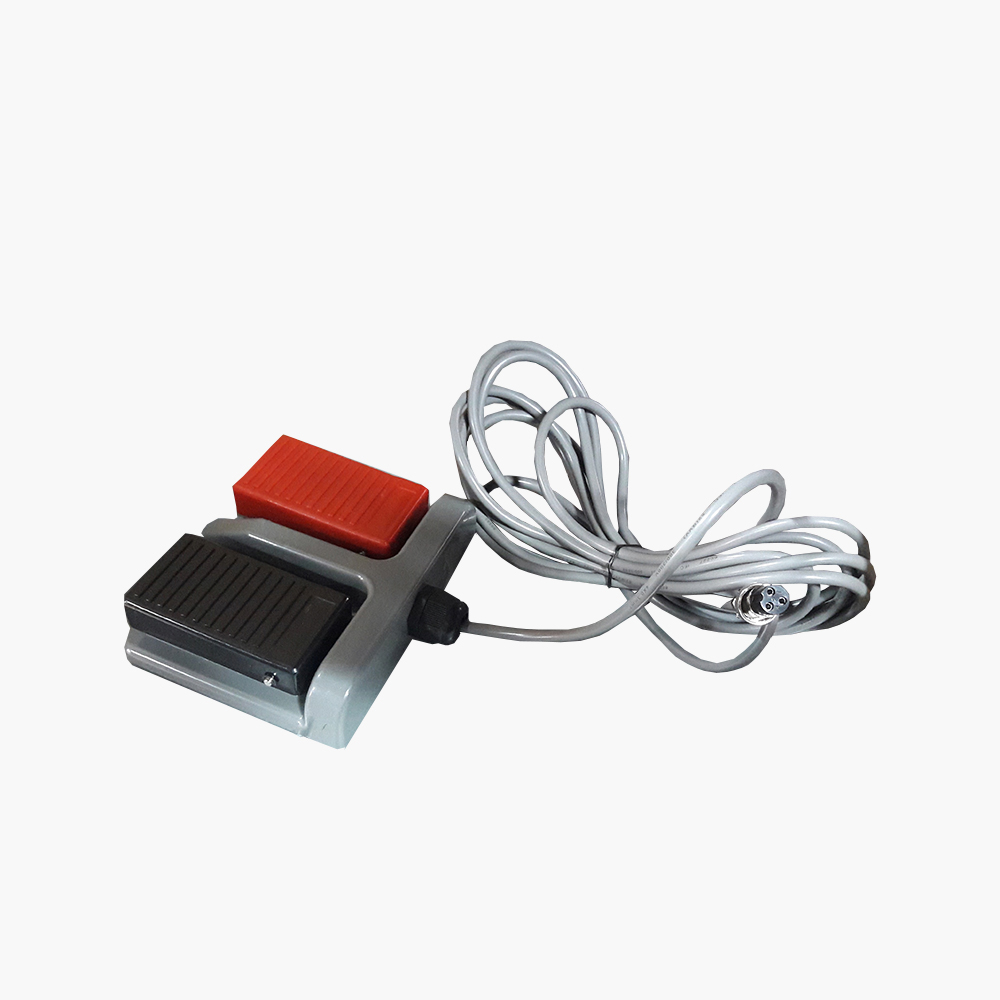

Foot switch
Fume Hood is
used to protect operator and environment from hazardous, corrosive, and toxic
fumes which can be generated during chemical experiments, and to prevent
potentially dangerous substances from spreading into environment. This cabinet
actively protects operator from inhaling toxic vapors and dramatically reduces
the risk of fire and explosion.
Key features:
1) Microprocessor
control system, LED display shows airflow level, adjustable at 9 levels.
2) 8° slope
front ergonomic design, fatigue-free working posture.
3) Back side
air compensation, to avoid turbulence in work area.
4) Transparent
side glass windows maximize light and visibility inside the cabinet, providing
a bright and working environment.
5) Foot
switch: Use foot switch to adjust height of front window.
6) Has one waterproof socket.
Work Surface Height: 750 mm
Airflow Velocity: 0.3-0.8 m/s, air speed adjustable
Front Window: Motorized
Max Opening: 520 mm
Blower: Built-in centrifugal blower, speed adjustable
Noise: ≤70 dB
20W UV Lamp, emission
of 253.7 nm
8W LED Lamp
External Size: 1000 x 840 x 2150 mm
Internal Size: 880 x 730 x 745 mm
Gross Weight: 230 kg
Material:
Front Window: 5 mm toughened glass
Work Table: Chemical resistant phenolic resin
Main Body and Base: Cold-rolled steel with anti-bacteria powder coating
Consumption: 400 W
Power Supply: AC 110V±10%, 60Hz
