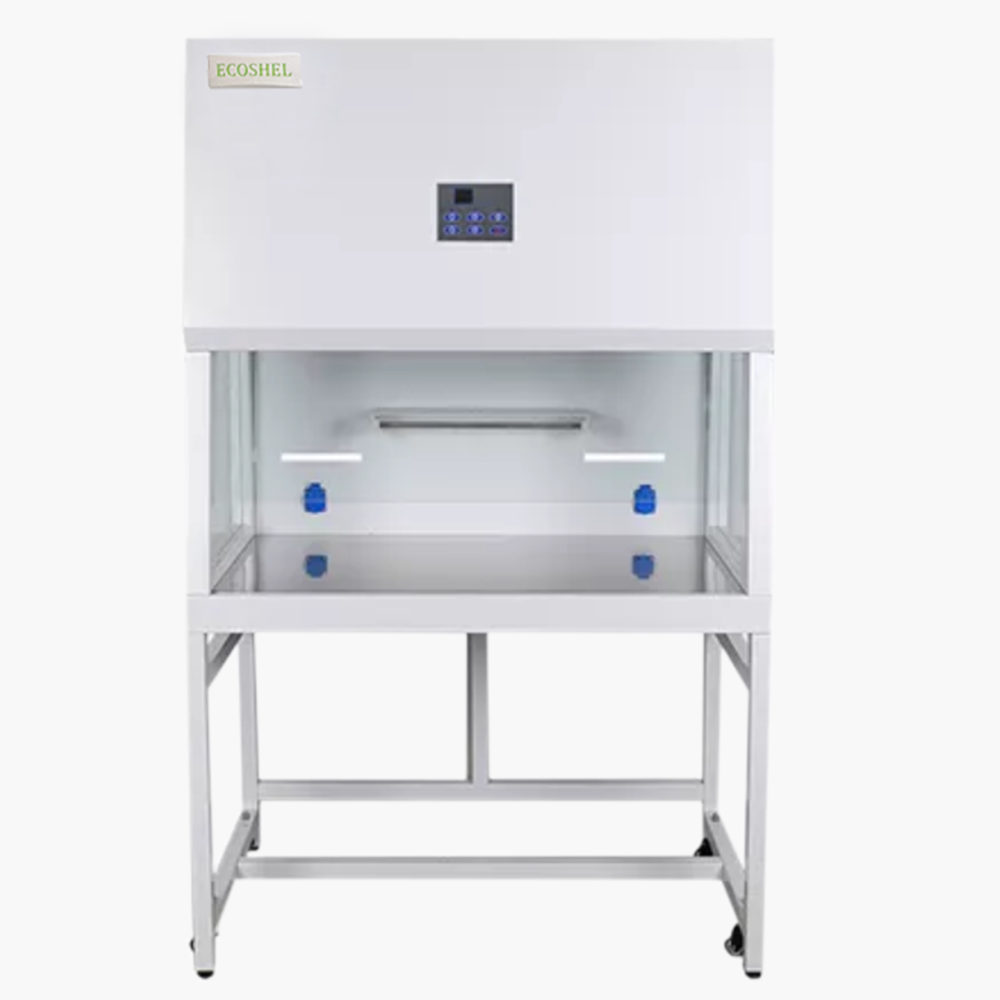

PCR Cabinet
PCR-01

PCR Cabinet is an equipment that makes a partial clean air environment, its air current is vertical. It has applied to chemical industry, metallurgy and refining, magnetic material, microorganism studies, medical science, research, and some other departments.



Standard Accessories:

Base stand

LED lamp

UV lamp

Waterproof sockets

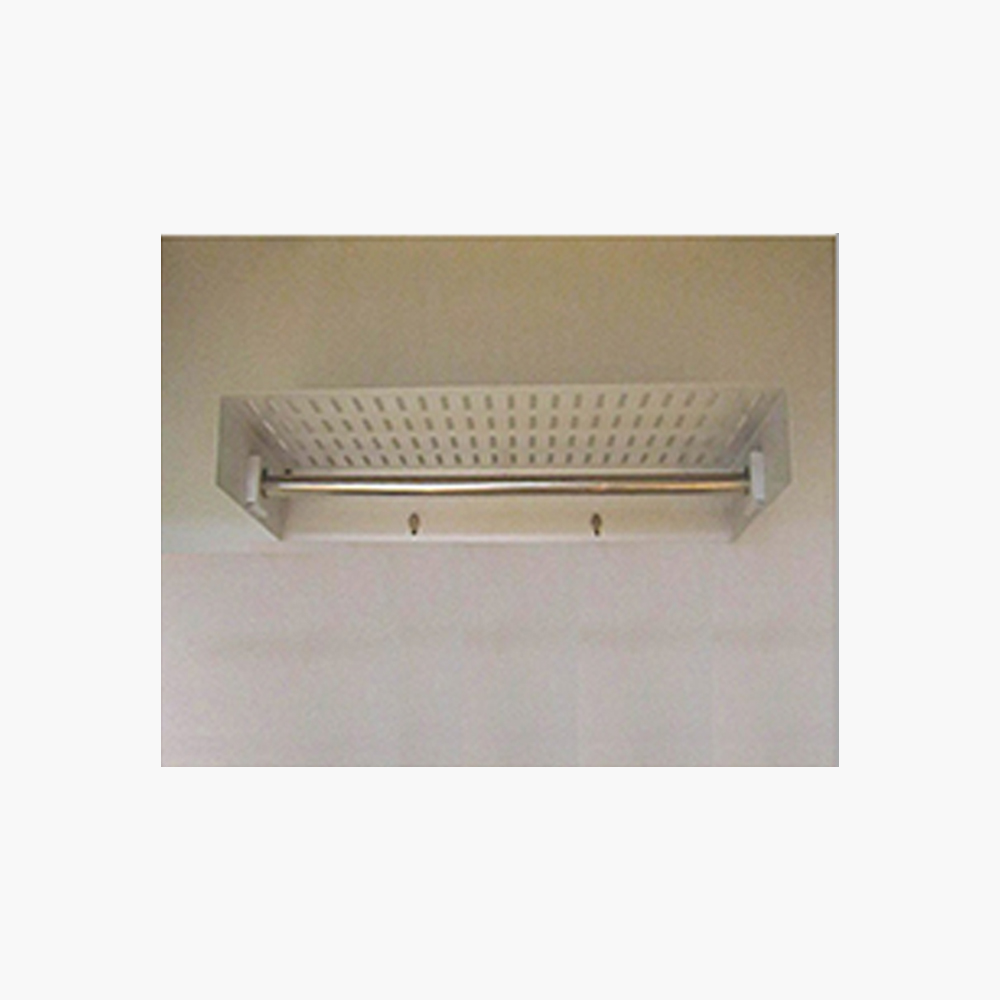

Shelf with IV bar

PCR Cabinet is an equipment that makes a partial clean air environment, its air current is vertical. It has applied to semiconductor industry, precision instrument, electronic component, optics apparatus, chemical industry, metallurgy and refining, magnetic material, microorganism studies, medical science, research and some other departments. It is useful to increase the quality, precision, stability, and reliability of products.



Key features:

1) Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.

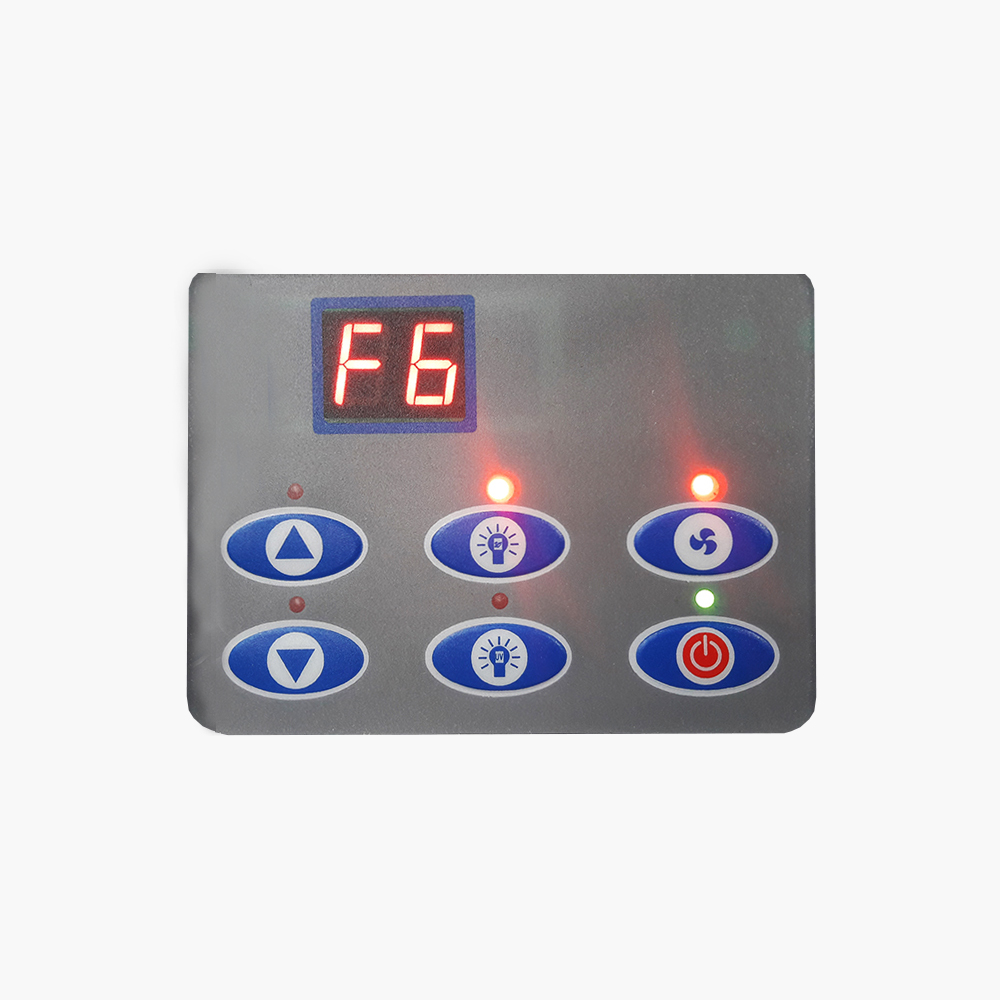

2) Microprocessor control system, LED Display.

3) UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.

4) Universal wheel with leveling feet.

Work Surface Height: 750 mm

Airflow Velocity: 0.3-0.5 m/s, air speed adjustable

Front Window: Manual

Max Opening: 320 mm

HEPA Filter, 99.999% efficiency at 0.3 µm

Polyester fiber pre-Filter, washable

Noise: ≤65 dB

20W UV Lamp, emission of 253.7 nm

8W LED Lamp

Shelf Size: 502 x 150 x 50 mm

External Size: 1000 x 705 x 1770 mm

Internal Size: 900 x 595 x 560 mm

Gross Weight: 150 kg

Material:

Front and Side Windows: 5 mm toughened glass

Work Table: 304 stainless steel

Main Body and Base: Cold-rolled steel with anti-bacteria powder coating

Consumption: 300 W

Power Supply: AC 110V±10%, 60Hz
