Laminar flow
cabinets are designed to protect samples and create partial particles-free
environment by taking air though a filtration system and exhausting it across a
work surface in a laminar air stream.
Standard Accessories:
Base stand
LED lamp
UV lamp
Laminar flow
cabinets are designed to protect samples and create partial particles-free environment
by taking air though a filtration system and exhausting it across a work surface
in a laminar or unidirectional air stream. The main function is to make sure
the accuracy of experiment at the operating area, so it is only for sample
protection. However, it could not protect the environment or operators. This
model is double sides type.
Key features:
1) Control panel is easy to use and soft keys.
2) Universal caster with leveling feet.
3) Microprocessor control system, LED Display.
4) Double sides work bench, 2-4 operators can work together, operators can sit face to face.
Work Surface Height: 750 mm
Airflow Velocity: 0.3-0.5 m/s, air speed adjustable
Front Window: Manual
Max Opening: 310 mm
HEPA Filter, 99.999% efficiency at 0.3 µm
Polyester fiber pre-filter, washable
Noise: <65 dB

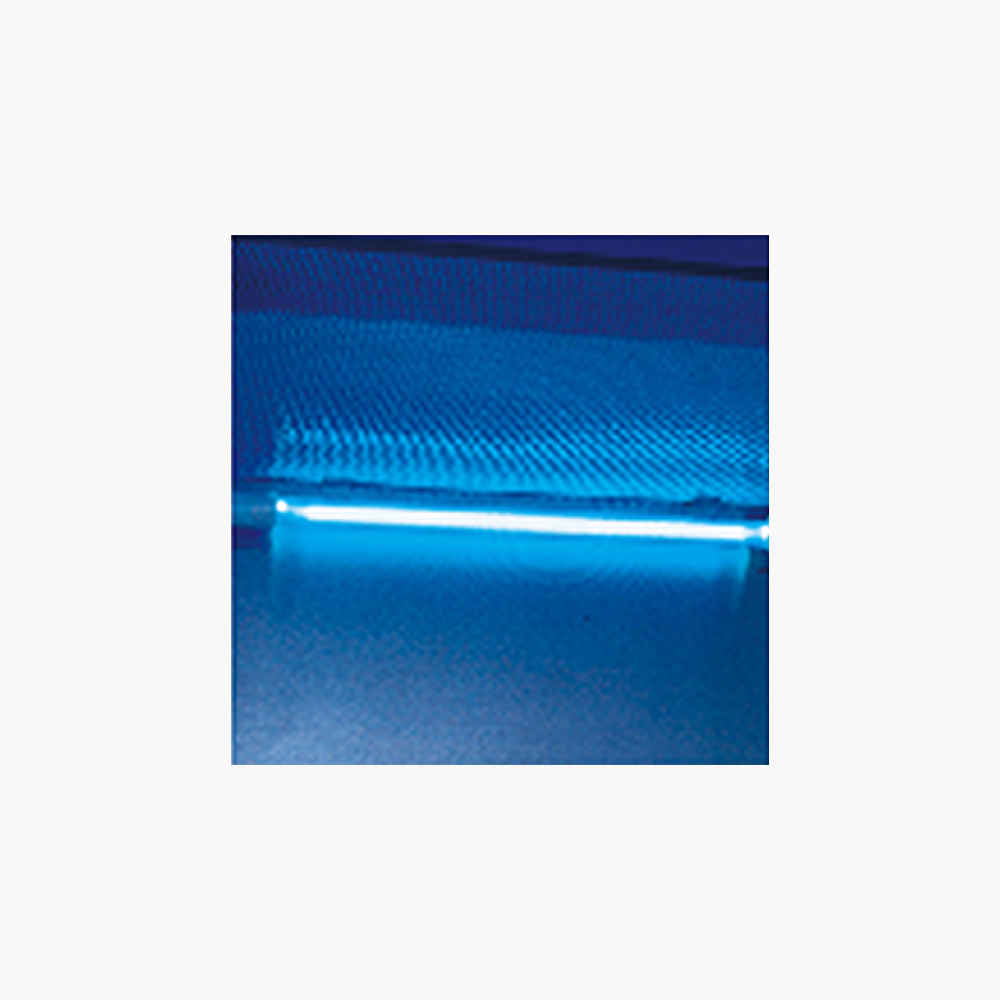

30W UV Lamp, emission of 253.7 nm
16W LED Lamp
External Size: 1440 x 660 x 1770 mm
Internal Size: 1340 x 560 x 545 mm
Gross Weight: 186 kg
Material:
Front Windows: 5 mm toughened glass
Work Table: 304 stainless steel
Main Body and Base: Cold-rolled steel with anti-bacteria powder
coating
Consumption: 600 W
Power Supply: AC 110V±10%, 60Hz
